Adtran TSU ACE 1200295L1 T1 DSU/CSU External Unit w/ V.35 Cable
The Adtran TSU ACE (part number 1200295L1) is a standalone external T1 DSU/CSU designed for connecting routers and other DTE equipment to a full or fractional T1 WAN circuit. It provides the channel service unit and data service unit functions in a single desktop enclosure, with a front-panel LCD menu system for local configuration and diagnostics — covering STATUS, CONFIG, UTIL, and TEST menus navigated via ENTER/CANCEL buttons and up/down arrows. LED indicators on the front panel monitor PWR, ERR, ALM, TEST, TD, RD, and RS line conditions at a glance.
Specifications & What's Included
- Manufacturer: Adtran
- Model: TSU ACE
- Part Number: 1200295L1
- Type: External T1 DSU/CSU
- Data Rate: 1.544 Mbps full T1 / Fractional T1
- DTE Interface: V.35 (Winchester M34 female connector on rear)
- Network Interface: RJ-48C (T1 line)
- Front Panel: Backlit LCD display with 4-menu navigation (STATUS, CONFIG, UTIL, TEST)
- Front Panel LEDs: PWR, ERR, ALM, TEST, TD, RD, RS, CD
- Rear Panel: V.35 Winchester M34 port, RJ-48C port, rocker power switch
- Form Factor: Desktop / External

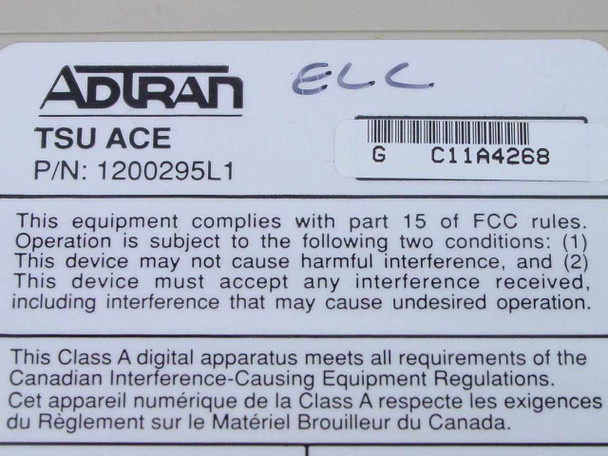

- Standards: FCC Part 15 Class A; Canadian ICES-003 (Class A digital apparatus)

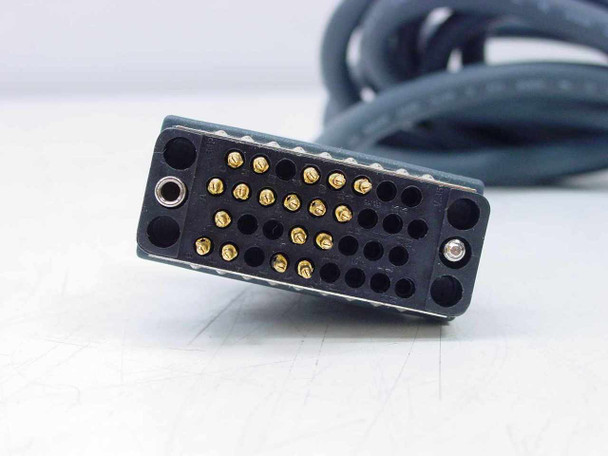

- Included: CAB-V.35MT-10 V.35 cable (smart-serial DB60 male to Winchester M34 male)
- Included: RJ flat telephone/network cable
Applications
The Adtran TSU ACE is designed for T1 WAN access — connecting a router or multiplexer to a telco-provisioned T1 circuit at speeds up to 1.544 Mbps or on fractional T1 subrates. DSU/CSU units like the TSU ACE serve as the demarcation point between the carrier network and customer equipment: the CSU function terminates the T1 line and provides loopback and testing capability, while the DSU function converts the router's serial data stream (V.35 in this case) to the bipolar line coding the T1 circuit requires. The TSU ACE was a popular choice in enterprise, campus, and small-business WAN deployments throughout the late 1990s and 2000s, frequently paired with Cisco routers using a V.35 serial cable — the included CAB-V.35MT-10 is the standard Cisco V.35 DTE cable used for exactly this purpose. Units like this remain in use in legacy T1 WAN environments and are sought after for lab testing, spare parts, and maintaining older Cisco/Adtran-based infrastructure.
This Adtran TSU ACE 1200295L1 external T1 DSU/CSU has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The unit shows light cosmetic wear consistent with normal use; the housing is intact and the front-panel LCD and controls appear undamaged. Included with the unit are a CAB-V.35MT-10 V.35 cable and an RJ network cable, both visible in our photos. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Adtran |
Model: |
TSU ACE |
MPN: |
1200295L1 |
SKU: |
21612 |
Type: |
External T1 DSU/CSU |
Interface Type: |
V.35, RJ-48C (T1 network) |
Data Rate: |
1.544 Mbps (T1) / Fractional T1 |
Form Factor: |
Desktop / External |
Display: |
LCD front panel with menu navigation |
Connector Type: |
V.35 (Winchester/M34), RJ-48C |
Management Type: |
Managed — front-panel LCD menu |
Included Cables: |
CAB-V.35MT-10 V.35 cable, RJ phone cable |
Standards Compliance: |
FCC Part 15 Class A, Canadian ICES-003 |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes CAB-V.35MT-10 V.35 cable and RJ network cable |
Condition Notes: |
Adtran TSU ACE 1200295L1 T1 DSU/CSU inspected and in good used condition. Pulled from a working environment. Includes CAB-V.35MT-10 V.35 cable and RJ network cable. Light cosmetic wear. Please contact us with any questions. |
