ADT HD14S1042-A 14 in B&W 4-Channel Surveillance CRT Video Monitor 100-240V

ADT HD14S1042-A 14 in B&W 4-Channel Surveillance CRT Video Monitor 100-240V

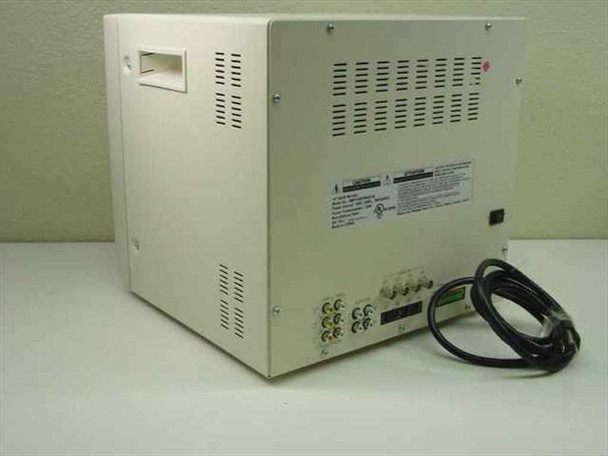

The ADT HD14S1042-A is a 14-inch black-and-white CRT surveillance monitor designed for closed-circuit television (CCTV) and security applications. It accepts four independent video channels via both BNC and S-Video inputs, making it suitable for multi-camera monitoring setups without an external quad processor. The monitor features audio inputs for each channel along with VCR in/out connections and an alarm terminal block for integration with security systems.

Specifications & What's Included

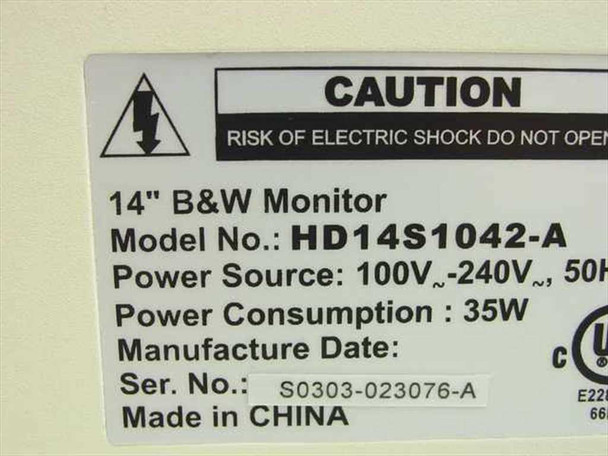

• Model: HD14S1042-A
• Screen size: 14 inches
• Display type: CRT (cathode ray tube), black & white (monochrome)
• Number of video channels: 4

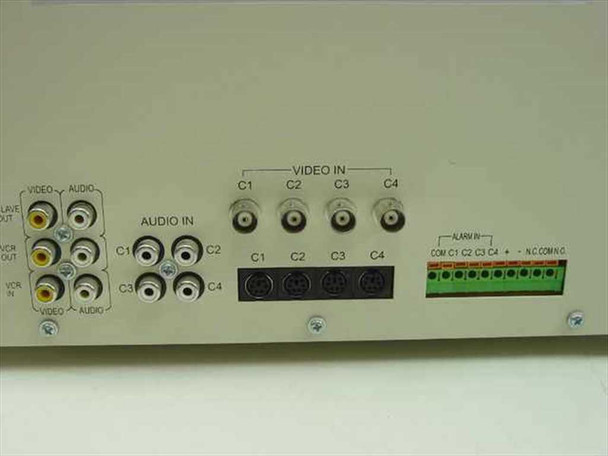

• Video inputs: 4x BNC (C1–C4) and 4x S-Video/DIN (C1–C4)
• Audio inputs: 4x RCA (C1–C4)
• Video outputs: RCA composite (Live Out)
• Audio output: RCA
• VCR connections: VCR In and VCR Out (RCA)
• Alarm input: Terminal block — COM, C1, C2, C3, C4, +, N.C., COM, N.C.
• Power: 100–240V AC, 50/60Hz (universal input)
• Power consumption: 35W
• Country of manufacture: China
• Includes: Power cord

Applications

14-inch black-and-white CRT surveillance monitors like the HD14S1042-A were standard equipment in analog CCTV installations from the 1990s through the mid-2000s, used in retail loss prevention, building security, parking structures, and small business monitoring stations. The four-channel input design allows a single monitor to cycle through or simultaneously display feeds from multiple cameras when paired with a quad splitter or sequence switcher. The alarm terminal block supports direct integration with motion detectors and door/window contacts, making this a self-contained display unit for modest security setups. These monitors are still sought after for maintaining legacy analog CCTV systems and for low-cost surveillance installations that do not require color output.
