ADI MicroScan A508 WR150A 15-Inch TFT LCD Monitor VGA 12V Desktop Display

ADI MicroScan A508 WR150A 15-Inch TFT LCD Monitor VGA 12V Desktop Display

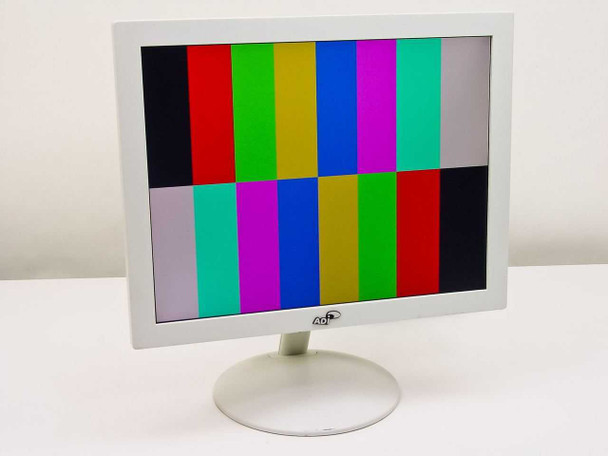

The ADI MicroScan A508 is a 15-inch TFT LCD flat-panel desktop monitor using a standard 15-pin VGA (HD-15) input. It runs on an external 12V DC power supply — compact, low-power, and suited for space-constrained setups. Front-panel OSD buttons provide direct access to power, menu, brightness/contrast adjustment, and auto-image tuning. The white housing mounts on a round tilt stand included with the unit.

Specifications & What's Included

• Brand: ADI (ADI Technologies)
• Model: A508 / WR150A
• Screen size: 15 inches (4:3 aspect ratio)
• Display type: TFT LCD (active matrix)

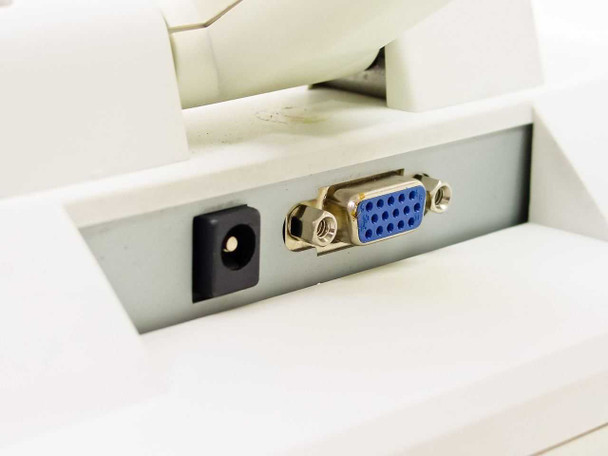

• Video input: VGA — 15-pin HD-15 D-Sub connector
• Power input: 12V DC, 3.3A (external adapter — not included)
• Front OSD controls: Power, Menu, Up (▲), Down (▼), Auto

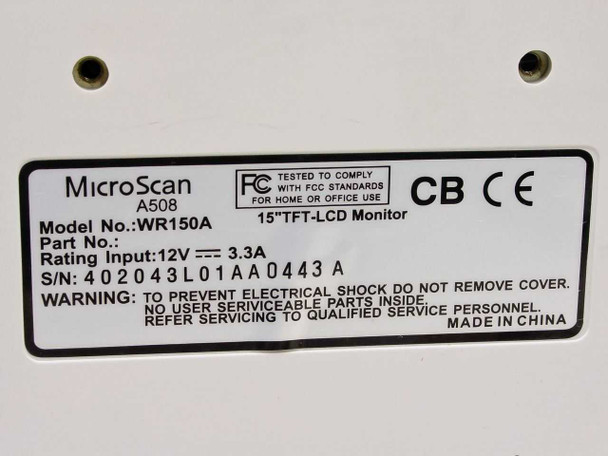

• Certifications: FCC, CB, CE
• Country of manufacture: China
• Included: Monitor with round tilt stand
• Not included: Power supply / AC adapter (requires external 12V DC 3.3A barrel-plug adapter)

Applications

The ADI MicroScan A508 is a compact 15-inch desktop LCD from the early-to-mid 2000s, a generation when 15-inch flat panels were replacing 15-inch CRT monitors as the mainstream desktop standard. It uses a universal analog VGA input, making it compatible with virtually any desktop PC, workstation, or embedded system with a standard VGA output. The 12V DC power requirement and compact footprint make it well suited to point-of-sale terminals, kiosk displays, industrial operator panels, and legacy PC setups where a small, low-power flat panel is needed. Units like this also remain in use as secondary displays, bench monitors in electronics labs, and replacement panels in older systems that only output VGA.
