Description
Adaptec ASH-1233 Ultra ATA-133 Dual Channel IDE PCI Controller Card 2126700

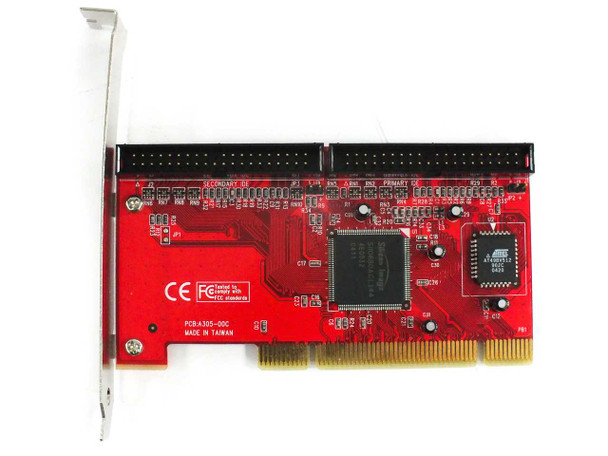

32-bit PCI controller card supporting two independent IDE channels with Ultra ATA-133 transfer rates up to 133 MB/s. Provides four total IDE ports (two per channel) for connecting legacy ATA/ATAPI devices.

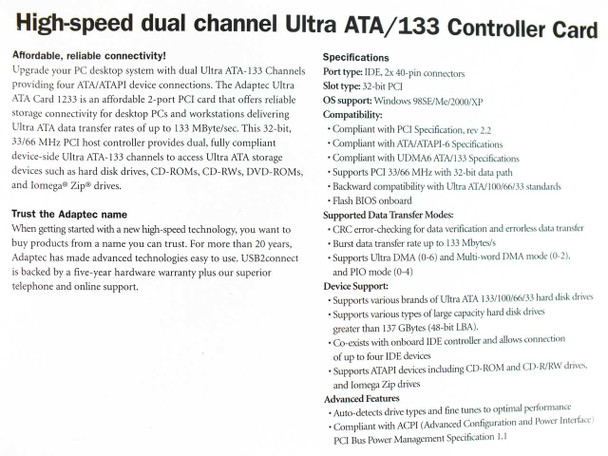

Specifications & What's Included
- Interface: Ultra ATA-133 with support for Ultra DMA modes 0-6
- Bus: 32-bit PCI v2.2 at 33/66 MHz
- Channels: 2 (dual channel primary and secondary)
- Connectors: 2x 40-pin IDE headers (2 devices per channel)
- Max Transfer Rate: 133 MB/s
- LBA Support: 48-bit (supports drives over 137 GB)

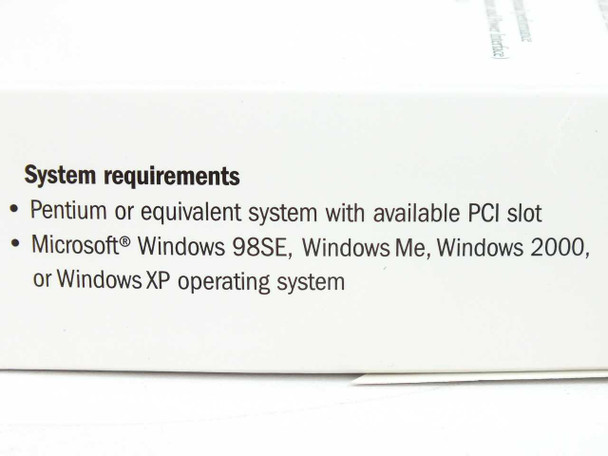

- Compatible OS: Windows 98SE, Me, 2000, XP
- Features: Onboard BIOS, CRC error-checking, ACPI compliant
- Includes: Installation disc and ASH-1233 installation guide
Applications
Used in tower and desktop systems running Windows 98 through XP to expand IDE capacity or add secondary controller functionality. Supported legacy ATA hard drives, CD-ROM drives, CD-R/RW burners, DVD-ROM drives, and Iomega Zip drives. Typical deployment in workstations and servers requiring additional storage channels beyond onboard IDE ports.
Condition: New - Open Box
This Adaptec ASH-1233 Ultra ATA-133 PCI controller card is new and unused, from open-box stock. The card shows no wear. Includes the original Adaptec Ultra ATA Card installation disc and the ASH-1233 ATA Adapter Installation Guide. Please view our photo set and contact us if you have any questions.
This Adaptec ASH-1233 Ultra ATA-133 PCI controller card is new and unused, from open-box stock. The card shows no wear. Includes the original Adaptec Ultra ATA Card installation disc and the ASH-1233 ATA Adapter Installation Guide. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Adaptec |
Model: |
ASH-1233 |
MPN: |
2126700 |
Secondary Model: |
2126900 |
Type: |
Ultra ATA / IDE PCI Controller Card |
GTIN: |
760884145838 |
SKU: |
18895 |
Interface: |
Ultra ATA-133 (IDE/ATAPI) |
Bus Type: |
32-Bit PCI |
PCI Speed: |
33/66 MHz |
Number of Channels: |
2 (Dual Channel — Primary + Secondary) |
Number of Ports: |
4 (2 devices per channel via 40-pin IDE) |
Connector Type: |
40-Pin IDE (2x) |
Max Data Transfer Rate: |
133 MB/s (Ultra ATA-133) |
Supported Transfer Modes: |
Ultra DMA 0–6, Multi-Word DMA 0–2, PIO 0–4 |
LBA Support: |
48-Bit LBA (drives >137 GB) |
Compatible OS: |
Windows 98SE, Me, 2000, XP |
Compatible Devices: |
Hard drives, CD-ROM, CD-R/RW, DVD-ROM, Iomega Zip |
Features: |
BIOS onboard, CRC error-checking, ACPI compliant |
PCI Bus Power Management: |
Specification 1.1 |

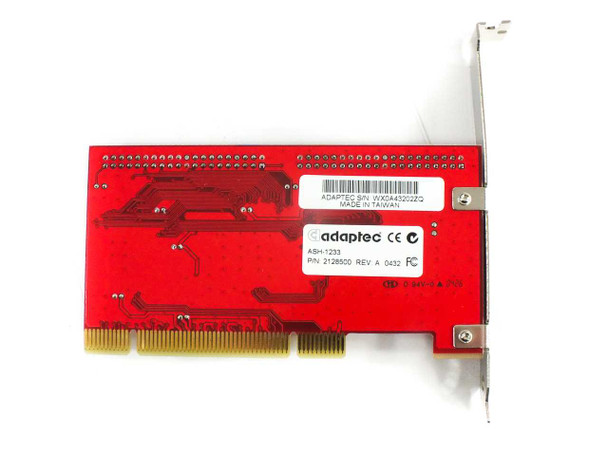

Hardware Revision: |
Rev A |
Country/Region of Manufacture: |
Taiwan |
Form Factor: |
PCI Card (Full Height) |
Seller Notes: |
Includes Adaptec Ultra ATA Card installation disc and ASH-1233 installation guide. |
Condition Notes: |
Adaptec ASH-1233 Ultra ATA-133 PCI controller card — new, unused, open-box stock. Card shows no wear. Includes original installation disc and installation guide. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
Compliance: |
PCI v2.2, ATA/ATAPI-6, UDMA/ATA-133, FCC, CE |
Condition: |
New – Open Box |
