Description
Adaptec AHA-1740 EISA SCSI Controller Card 68-Pin External AIC-7770 Chipset

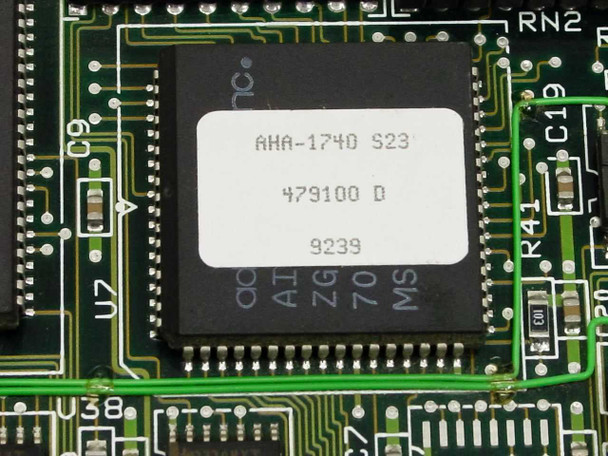

The Adaptec AHA-1740 is a full-length EISA-bus SCSI-2 host adapter built around Adaptec's AIC-7770 controller chipset. It provides Fast SCSI connectivity via a 68-pin external (HD68) port and dual internal 50-pin IDC headers, allowing a host system to connect a broad range of SCSI-2 peripherals including hard drives, tape drives, optical drives, and scanners. The chip label visible on the main controller reads AHA-1740 S23 / 479100 D with a date code of 9239, placing manufacture in late 1992.
Specifications & What's Included
- Model: Adaptec AHA-1740
- Controller Chipset: Adaptec AIC-7770
- Bus Interface: EISA (Extended Industry Standard Architecture) — full-length card
- SCSI Standard: Fast SCSI / SCSI-2
- External Connector: 1x 68-pin HD68 SCSI port on bracket
- Internal Connectors: 2x 50-pin IDC SCSI headers (visible on PCB)
- Part Number on Chip: 479100 D
- Chip Revision: S23
- Date Code: 9239 (39th week of 1992)
- Form Factor: Full-length EISA expansion card
- Bracket Label: "SGL"
- Included: Card only — no cables or accessories
Applications
The AHA-1740 was designed for EISA-bus workstations and servers of the early-to-mid 1990s — a generation of high-performance PC-compatible systems from manufacturers like Compaq, HP, AST, and others that used EISA as an alternative to ISA for higher bandwidth expansion. EISA provided 32-bit bus access at 8.33 MHz, and host adapters like the AHA-1740 took advantage of that bandwidth to drive multiple Fast SCSI devices simultaneously, making it a common choice for small departmental servers and CAD workstations of the era. The AIC-7770 chipset was Adaptec's workhorse EISA SCSI controller, supporting bus mastering DMA for reduced CPU overhead. Today these cards are sought by collectors and hobbyists maintaining legacy EISA-based systems, as well as industrial and scientific environments where older EISA workstations remain in service driving legacy SCSI instruments or storage arrays.
This Adaptec AHA-1740 EISA SCSI Controller Card has been inspected and appears to be in good condition. The PCB is clean with no visible damage, broken traces, or missing components. The 68-pin external SCSI connector and internal 50-pin headers look intact. The bracket has a handwritten "SGL" label. Normal light handling wear is present consistent with prior installation in a workstation or server. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Adaptec |
Model: |
AHA-1740 |
MPN: |
AHA-1740 |
Secondary Model: |
479100 D |
Type: |
SCSI Host Adapter / Controller Card |
SKU: |
34749 |
Chipset: |
Adaptec AIC-7770 |
Bus Interface: |
EISA |
SCSI Type: |
Fast SCSI / SCSI-2 |
External Connector: |
68-Pin SCSI (HD68) |
Internal Connector: |
50-Pin IDC (internal ribbon) |
Form Factor: |
Full-Length EISA Card |
Condition: |
Used – Inspected and Pulled from Working Environment |
Seller Notes: |
Card only; no cables or accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Adaptec AHA-1740 EISA SCSI Controller Card. Inspected, good condition. PCB clean, connectors intact. Normal light wear from prior installation. Card only, no cables. |
