Description

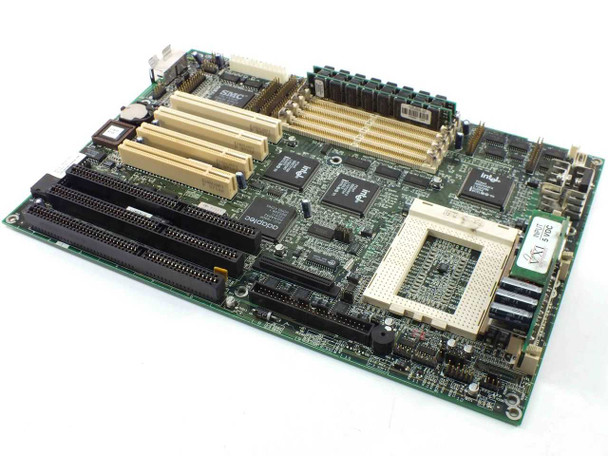

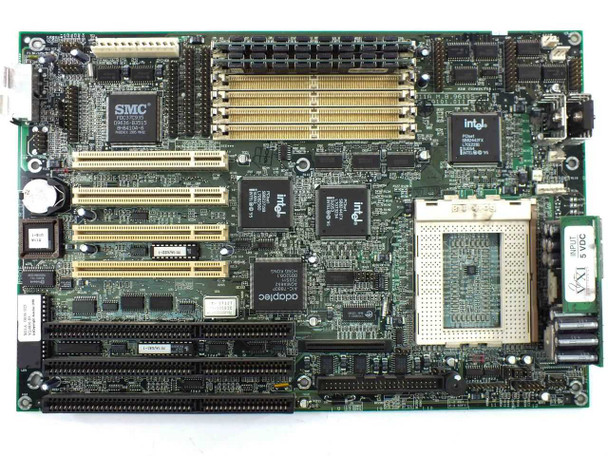

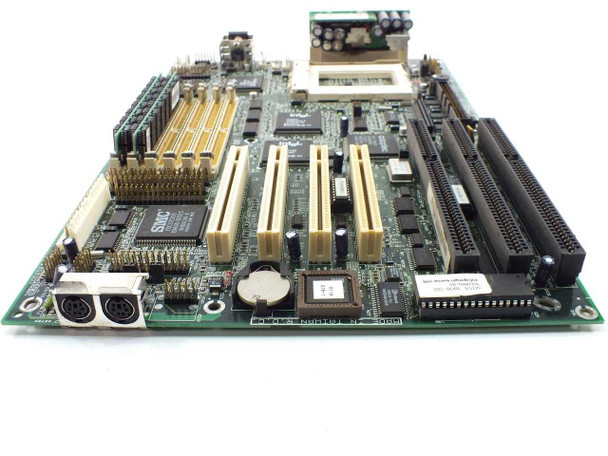

Acer 48.59101 Socket 8 Motherboard 3 ISA 4 PCI Intel PCIset AS-IS w/RAM VRM
The Acer 48.59101 is a Socket 8 motherboard designed for Intel Pentium Pro processors and compatible with the Pentium II Overdrive. It uses the Intel SB82442FX PCIset (visible on the board) and offers a full complement of ISA and PCI expansion slots for legacy peripheral cards. This board is being sold AS-IS and has not been powered or tested at our facility — it is offered for parts, repair, or restoration.
Specifications & What's Included
- Manufacturer: Acer
- Part Number: 48.59101 (board silk-screen: 48.59101.011)
- CPU Socket: Socket 8 (Intel Pentium Pro / Pentium II Overdrive)
- Chipset: Intel SB82442FX PCIset
- BIOS: M11A BIOS U25, Version V2.0R01-B5, © AcerInc. 1998
- Expansion Slots: 3 × ISA, 4 × PCI
- Memory Slots: Multiple SIMM slots (EDO/FPM DRAM)
- Super I/O Controller: SMC (visible on PCB)
- Onboard SCSI Controller: Adaptec (visible on PCB)
- I/O Ports: Dual PS/2 ports (keyboard and mouse) visible on rear
- VRM Module: Included — header part number 76H1815
- RAM Module: Included — M11A 96105-1
- Form Factor: AT / Full-Size
Applications
Socket 8 motherboards were introduced by Intel in 1995 to support the Pentium Pro processor, a high-performance chip aimed at workstation and server applications. The Pentium Pro was notable for integrating the L2 cache directly into the processor package, giving it exceptional performance for 32-bit workloads — making boards like this one common in mid-to-late 1990s server rooms, CAD workstations, and high-end desktops. Socket 8 was also the last socket to support the Pentium II Overdrive processor, which allowed some systems to be upgraded beyond the original Pentium Pro. Today these boards are sought by vintage computing enthusiasts, collectors building period-correct 1990s workstations, and technicians restoring legacy server or industrial systems that originally ran on the Pentium Pro platform. The onboard Adaptec SCSI controller makes this board particularly useful for systems requiring SCSI storage connectivity without a separate expansion card.
This Acer 48.59101 Socket 8 Motherboard is being sold AS-IS and has not been tested at our facility. No functionality is guaranteed. The board includes the VRM module (header 76H1815) and RAM (M11A 96105-1) as shown in the photos. Cosmetically the board appears clean with no obvious physical damage visible in the photos, but buyers should review all images carefully before purchasing. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Acer |
Model: |
48.59101 |
MPN: |
48.59101.011 |
SKU: |
21801 |
Type: |
Desktop/Server Motherboard |
Socket Type: |
Socket 8 |
Chipset: |
Intel SB82442FX (PCIset) |
Form Factor: |
AT / Full-Size |
Expansion Slots: |
3 x ISA, 4 x PCI |
Memory Type: |
EDO/FPM DRAM (SIMM) |
BIOS Version: |
M11A BIOS U25 V2.0R01-B5 (c)AcerInc.1998 |
Compatible CPU: |
Intel Pentium Pro, Pentium II Overdrive |
VRM Header: |
76H1815 |
RAM Module: |
M11A 96105-1 |
Super I/O: |
SMC (visible on PCB) |
SCSI Controller: |
Adaptec (onboard, visible on PCB) |
Country/Region of Manufacture: |
Taiwan |
Condition Notes: |
Acer 48.59101 Socket 8 Motherboard sold AS-IS, untested. No functionality guaranteed. Includes VRM (76H1815) and RAM (M11A 96105-1). Board appears clean cosmetically. Please review all photos. |
