Accuvision 200 Power Supply with Pneumatics Vacuum Gauge PSI Gauge Locking Inlet

Accuvision 200 Power Supply with Pneumatics Vacuum Gauge PSI Gauge Locking Inlet

The Accuvision 200 is a combined power supply and pneumatic control unit built in a rectangular rackmount/panel-mount enclosure. The front panel features two analog gauges — a vacuum gauge (0–30 in Hg, U.S. Gauge, Made in USA) and a pressure gauge (0–160 PSI) — along with a slot-style vent and a lever-style handle. The rear assembly integrates the pneumatic plumbing, electrical connections, and power inlet in a compact, organized layout.

Specifications & What's Included

• Model: Accuvision 200
• Type: Power Supply with integrated Pneumatic Assembly
• Form factor: Rackmount / panel-mount enclosure
• Front panel: Vacuum gauge (0–30 in Hg, U.S. Gauge), pressure gauge (0–160 PSI), lever handle, slot vent
• Power inlet: Twist-lock locking connector — 15A, 250V (visible on rear)
• Dual panel-mount fuse holders (rear)
• Multi-pin circular connector (rear, for signal/control wiring)
• BNC-style cable outputs at front panel

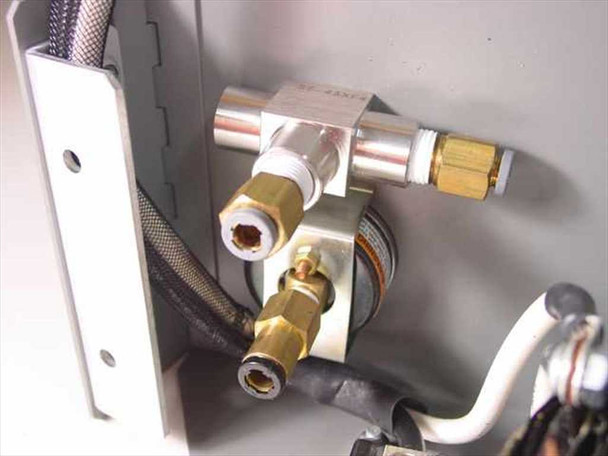

• Pneumatic manifold block with brass compression fittings and braided stainless hose connections
• Brass compression fittings for pneumatic line connections
• Wiring harness with cable bundle (rear)

Applications

Combined power and pneumatic control modules of this type are used in industrial automation systems where both electrical power distribution and pneumatic pressure/vacuum control are managed from a single unit. Typical applications include automated test fixtures, semiconductor process equipment, pick-and-place systems, and controlled pneumatic actuation platforms where vacuum and positive pressure need to be monitored and regulated alongside power delivery. The integrated gauges allow operators to monitor both vacuum and positive pressure lines at a glance from the front panel.
