ABB S282-K20W 2-Pole 20A K-Curve DIN Rail Circuit Breaker 480Y/277V 10kA

(No reviews yet) Write a Review
SKU:
46016
MPN:
S282-K20W
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

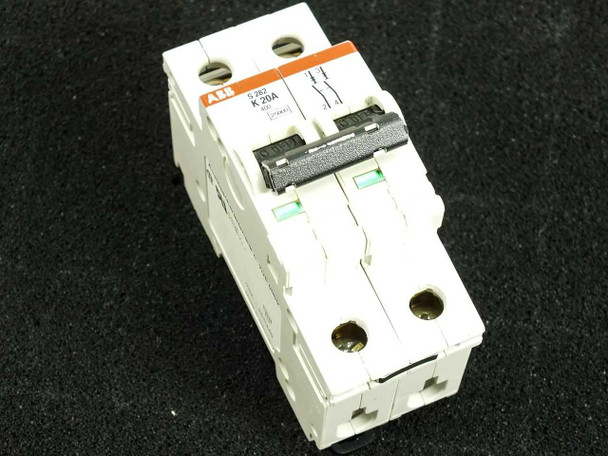

  • ABB S282-K20W 2-pole 20A DIN rail circuit breaker – front view showing toggle handle and green status indicators
  • ABB S282-K20W circuit breaker – front three-quarter view showing ABB logo, orange label, and toggle in OFF position
  • ABB S282 K20A label close-up showing model number, K-curve rating, ~400V, and 25000 interrupting rating with wiring diagram
  • ABB S282-K20W bottom terminal view showing ring tongue screw terminals and DIN rail clip
  • ABB S282-K20W side view showing UL and VDE certification markings and Made in Germany label

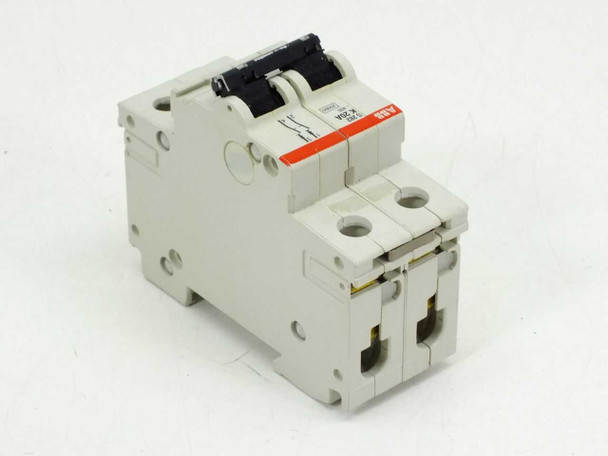

  • ABB S282-K20W opposite side view showing wiring diagram label and DIN rail mounting clip
  • ABB S282 K20A front label close-up – S282, K20A, ~400, 25000, and pole connection diagram

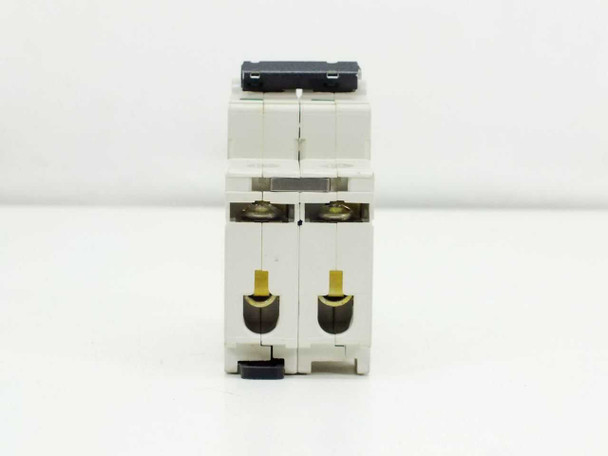

  • ABB S282-K20W bottom view showing two yellow screw terminal heads and DIN rail snap mount
$14.70
Was: $40.00
Current Stock: 6

Sold Out

Description

ABB S282-K20W 2-Pole 20A K-Curve DIN Rail Circuit Breaker 480Y/277V 10kA

Miniature circuit breaker for DIN rail mounting. Provides overcurrent protection and switching control in industrial and telecom power distribution systems.

Specifications & What's Included

  • Brand: ABB | Model: S282-K20W | Series: S280
  • 2-pole, 20A, K-Curve trip characteristic
  • 10kA interrupt rating at 480Y/277V AC (rated ~400V)
  • DIN rail mount, ring tongue compatible terminals
  • UL and VDE certified
  • Breaker only; no accessories included

Applications

K-Curve breakers are used in circuits with moderate inrush currents, including motor feeders, HVAC systems, and industrial machinery. This unit's 20A rating and dual-pole configuration suit branch circuit protection in three-phase 480Y/277V systems common in commercial and industrial facilities. ABB S280 series breakers are found in control panels, distribution boards, and telecom equipment cabinets.

Condition: Used
This ABB S282-K20W 2-Pole 20A K-Curve DIN Rail Circuit Breaker has been inspected and is in good used condition. The housing is clean and intact with no cracks or significant damage. Both toggle handles operate correctly and the green status indicators are visible. Terminal screws and the DIN rail clip are present and appear undamaged. Normal light handling wear is present consistent with prior installation. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ABB
Model:
S282-K20W
MPN:
S282-K20W
Type:
Miniature Circuit Breaker (MCB)
SKU:
46016
Series:
S280
Number of Poles:
2
Amperage:
20A
Trip Curve:
K-Curve
Interrupt Rating:
10kA
Voltage Rating:
480Y/277V AC
Rated Voltage:
~400V (per label)
Mounting Type:
DIN Rail
Terminal Type:
Ring Tongue Compatible
Condition:
Used – Inspected and in Good Condition
Country/Region of Manufacture:
Germany
Certifications:
UL, VDE
Form Factor:
DIN Rail Module
Seller Notes:
Breaker only; no accessories included.
Condition Notes:
ABB S282-K20W 2-pole 20A DIN rail circuit breaker. Inspected and in good used condition. Housing intact, toggles functional, terminals and DIN clip undamaged. Normal handling wear. Photos available.
View AllClose

Related Products

Related Products

ABB S282-K6W K6A 2-pole DIN rail circuit breaker – front angled view showing toggle handle and orange ABB label ABB S282 K6A 2-pole circuit breaker – left-side angled view showing DIN rail clip and terminal openings
Add to Cart
Quick view

ABB S282-K6W K6A 2-Pole DIN Rail Circuit Breaker 480Y/277V 10kA Ring Tongue

ABB

$15.60
Was: $44.00
ABB S282-K6W K6A 2-Pole DIN Rail Circuit Breaker 480Y/277V 10kA Ring Tongue Miniature circuit breaker for two-pole AC applications. Provides overload and short-circuit protection in industrial...
46010
SKU:
46010
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
ABB
Model:
S282-K6W
MPN:
S282-K6W
Type:
Miniature Circuit Breaker (MCB)
SKU:
46010
Series:
S280
Trip Characteristic:
K (magnetic-hydraulic, high inrush tolerance)
Current Rating:
6A
Number of Poles:
2
Voltage Rating:
480Y/277V AC
Interrupting Capacity:
10kA
Terminal Type:
Ring Tongue
Mounting Type:
DIN Rail
Certifications:
UL Listed, VDE
Country/Region of Manufacture:
Germany
Form Factor:
DIN Rail Module
Condition:
Used – Inspected, Good Condition
Seller Notes:
Unit only; inspected and in good condition.
Condition Notes:
ABB S282-K6W K6A 2-pole DIN rail circuit breaker. Inspected and in good used condition. Housing clean, label legible, toggle operates normally, DIN rail clip intact. Light wear from prior installation.

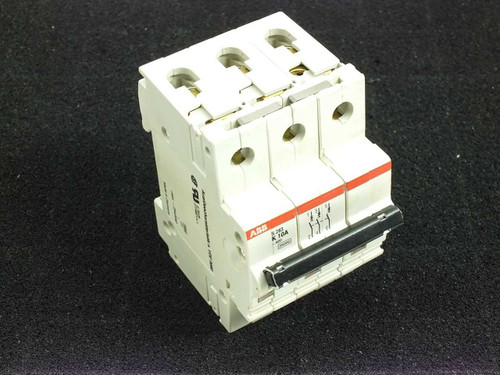

ABB S283-K10W 3-pole DIN rail circuit breaker — front-left angle view showing ABB label and K10A rating ABB S283-K10W circuit breaker — rear view showing three gold-contact screw terminals and DIN rail clip
