Description

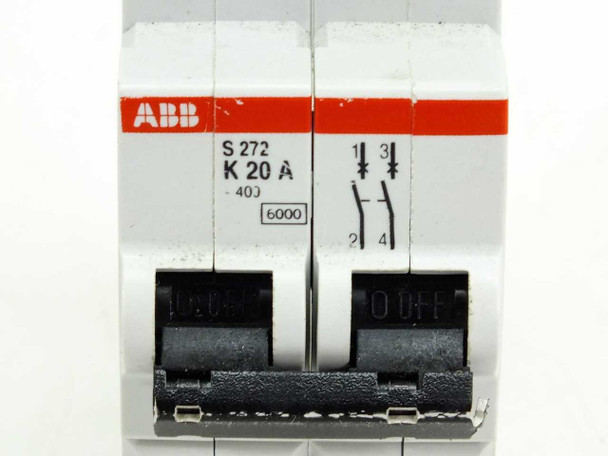

ABB S272-K20A Circuit Breaker 20A 2-Pole 277/480VAC 6kA DIN Rail Mount
The ABB S272-K20A is a 2-pole miniature circuit breaker (MCB) from ABB's S270 series, rated at 20 amps and 277/480VAC. It features a K-curve trip characteristic and a 6kA breaking capacity, designed for DIN rail installation in distribution panels and control cabinets.
Specifications & What's Included
- Manufacturer: ABB
- Model: S272-K20A (S270 Series)
- Type: Miniature Circuit Breaker (MCB)
- Number of Poles: 2
- Current Rating: 20A
- Voltage Rating: 277/480VAC
- Breaking Capacity: 6kA (6000A)
- Trip Curve: K (suitable for loads with high inrush currents)
- Temperature Rating: -40°C minimum (per label)
- Mounting: DIN Rail
- Terminal Connections: Screw terminals, top and bottom
- Standards: IEC 60898, CE marked
- Circuit breaker only — no accessories or mounting hardware included
Applications
The ABB S270 series miniature circuit breakers are widely used in commercial and industrial electrical distribution panels, machine control cabinets, and building automation systems. The 2-pole configuration makes this breaker suitable for 240V single-phase or 480V three-phase branch circuit protection where both legs must be switched simultaneously. The K-curve trip characteristic is designed for loads that draw high inrush currents on startup — such as transformers, solenoids, and certain motor loads — distinguishing it from the more common B and C curves used on resistive or standard motor loads. DIN rail mounting allows fast installation and removal in standard European-style and IEC-compliant distribution enclosures, which are common in industrial machinery, HVAC controls, and process automation panels.

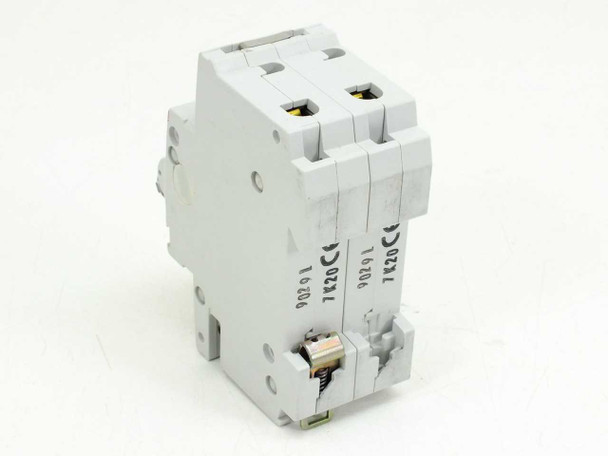

This ABB S272-K20A 2-Pole 20A Miniature Circuit Breaker has been inspected and is in good condition. The housing is clean and intact with no visible cracks or damage. The toggle handles move freely and the DIN rail clip appears undamaged and functional. Screw terminals show only minor wear consistent with previous installation use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
ABB |
Model: |
S272-K20A |
MPN: |
S272-K20A |
Type: |
Miniature Circuit Breaker (MCB) |
SKU: |
46320 |
Series: |
S270 |
Number of Poles: |
2 |
Current Rating: |
20A |
Voltage Rating: |
277/480VAC |
Breaking Capacity: |
6kA |
Trip Curve: |
K |
Mounting Type: |
DIN Rail |
Seller Notes: |
Circuit breaker only — no accessories or mounting hardware included. |
Country/Region of Manufacture: |
Germany |
Form Factor: |
DIN Rail Module |
Standards Compliance: |
IEC 60898, CE |
Temperature Rating: |
-40°C minimum (per label marking) |
Condition Notes: |
This ABB S272-K20A 2-Pole 20A DIN Rail Circuit Breaker has been inspected and is in good condition. Housing is clean and intact, toggle handles move freely, terminals show minor wear from prior use. Please contact us with any questions. |
