Aavid Black Anodized Aluminum TO-220 Heat Sink Fin PCB Mount Pin Style

Aavid Black Anodized Aluminum TO-220 Heat Sink Fin PCB Mount Pin Style

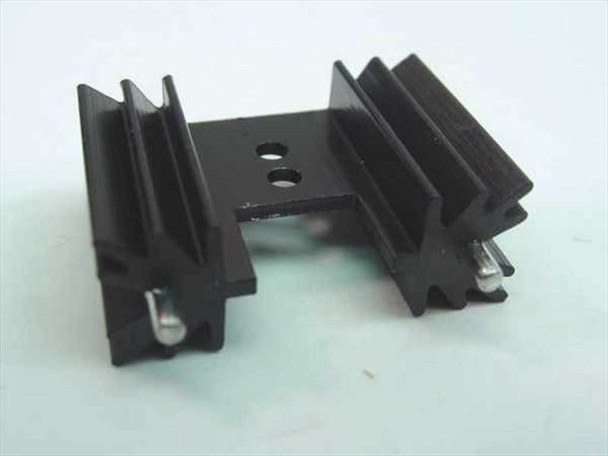

This is a black anodized aluminum fin heat sink from Aavid designed for TO-220 package components. It features a longitudinal fin array for passive convection cooling and mounts directly to a PCB via two through-hole pins. Two mounting holes on the body allow optional mechanical fastening to the component or board. The black anodized finish improves thermal emissivity compared to bare aluminum.

Specifications & What's Included

• Brand: Aavid
• Type: PCB mount fin heat sink
• Compatible package: TO-220
• Material: Black anodized aluminum
• Fin configuration: Longitudinal fin array, dual-sided
• Mounting style: Through-hole PCB pins (2 pins visible)
• Mounting holes: 2 (on body, for mechanical fastening)
• Includes: 1 heat sink unit

Applications

TO-220 heat sinks like this are standard components in electronics design, used to dissipate heat from TO-220 package devices such as voltage regulators (e.g. 7805, LM317), power transistors, MOSFETs, and thyristors. The PCB pin mount style makes them well suited for through-hole assembly on circuit boards where space is limited and a clip or screw mount is impractical. Aavid (now part of Boyd Corporation) has been a leading manufacturer of thermal management components for decades, and their TO-220 heat sinks are widely used in power supply design, motor drivers, audio amplifiers, and industrial control electronics. The black anodized finish is standard on Aavid's higher-emissivity heat sinks intended for passive convection environments.
