Description
A.G. Heinze DL-150 Dyna Lite 150 Fiber Optic Illuminator Power Supply 150W 115V

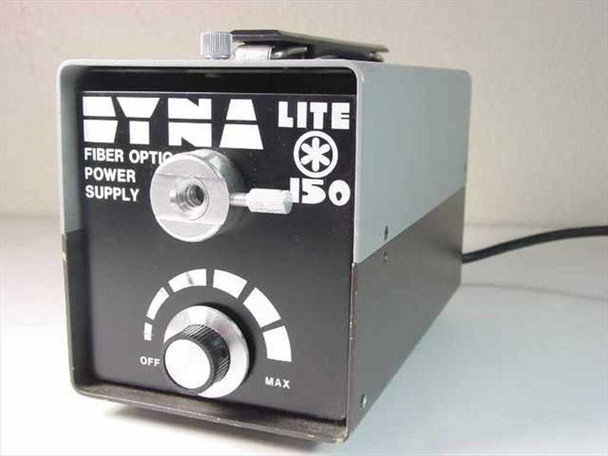

The A.G. Heinze DL-150 Dyna Lite 150 is a benchtop fiber optic illuminator power supply designed to drive halogen lamp-based fiber optic light guides for microscopy and related laboratory applications. It delivers up to 150 watts of output through an 8mm ferrule output port and features a smooth rotary intensity control knob that adjusts light output from OFF to MAX. The unit is manufactured in the USA by A.G. Heinze Co., Inc. of Irvine, California, and carries a UL listing.
Specifications & What's Included
- Model: DL-150 (Dyna Lite 150)
- Manufacturer: A.G. Heinze Co., Inc., Irvine, CA
- Output: 150 Watts
- Input: 115V AC, 60Hz, 3 Amp
- Fuse: 3 Amp

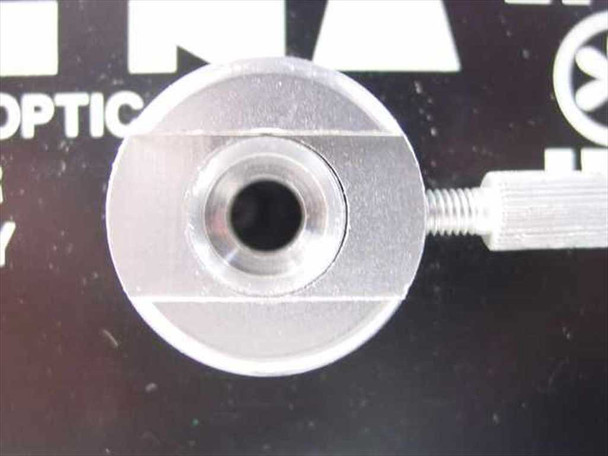

- Fiber optic output: 8mm ferrule receptacle
- Lamp type: EJA or EKE halogen (per rear panel caution label)
- Intensity control: variable rotary knob, OFF to MAX
- Form factor: benchtop enclosure
- Dimensions: 12 x 15 x 22 cm
- UL listed
- Manufactured in the U.S.A.
- Includes: power supply unit only — no fiber optic light guide or cable included
Applications
Fiber optic illuminator power supplies like the DL-150 are standard light sources used with fiber optic light guides in stereo and compound microscopy, providing bright, controllable, and heat-free illumination at the specimen. The 8mm ferrule interface is a common format that fits a wide range of fiber optic light guide probes and bifurcated cables used with stereo microscopes, inspection systems, and other lab instruments requiring directed fiber-delivered light. The variable intensity control makes the DL-150 suitable for applications where precise light level adjustment is important, such as biological specimen imaging, quality inspection, and materials examination. A.G. Heinze fiber optic illuminators were widely used in academic, industrial, and clinical laboratory settings from the 1980s onward and remain compatible with many fiber optic accessories in current use.

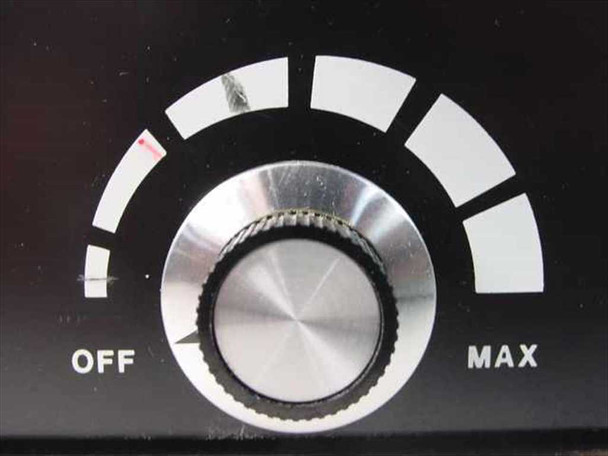

This A.G. Heinze DL-150 Dyna Lite 150 Fiber Optic Illuminator Power Supply has been inspected and appears to be in good used condition. The front panel, housing, and controls show normal wear consistent with lab use. The rotary intensity knob has light surface scratching on its face, visible in the photos. The 8mm ferrule output port and rear lamp compartment are clean and intact. The unit was pulled from a working environment where it was previously in service. Please review all photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
A.G. Heinze |
Model: |
DL-150 |
MPN: |
DL-150 |
Type: |
Fiber Optic Illuminator Power Supply |
SKU: |
30906 |
Output Power: |
150 Watts |
Input Voltage: |
115V AC, 60Hz |
Input Current: |
3 Amp |
Fuse Rating: |
3 Amp |
Ferrule Size: |
8 mm |
Lamp Type: |
EJA or EKE (halogen) |
Intensity Control: |
Variable rotary knob (OFF to MAX) |
Dimensions: |
12 x 15 x 22 cm |
Country/Region of Manufacture: |
United States |
UL Listed: |
Yes |
Compatible With: |
Fiber optic microscope illuminators, 8mm ferrule light guides |
Form Factor: |
Benchtop |
Seller Notes: |
Unit only — no fiber optic light guide or cable included. |
Condition Notes: |
This A.G. Heinze DL-150 Dyna Lite 150 Fiber Optic Power Supply is in good used condition. Pulled from a working environment. Knob shows light surface wear. Housing intact. Please view photos and contact us with questions. |
