80 Gallon HDPE Chemical Spill Containment Sump Pallet 50x50x16 4000 lb Cap

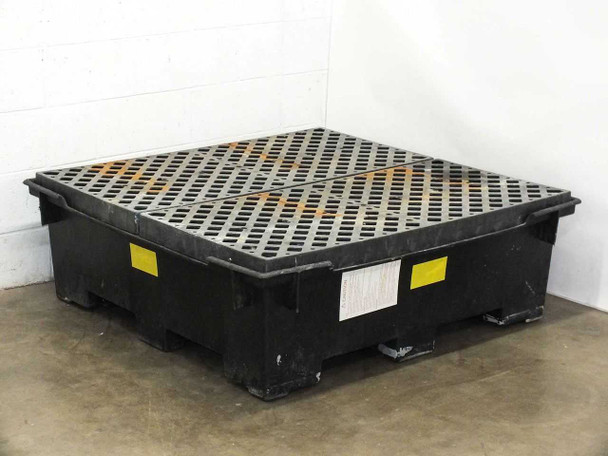

This is an 80-gallon high-density polyethylene (HDPE) chemical spill containment sump pallet measuring 50" L x 50" W x 16" H. Designed for secondary containment of drums and containers storing hazardous or corrosive liquids, it collects and holds spills, leaks, and overfills before they can reach the floor or drain into the environment. The sump body is a single molded HDPE basin with forklift-entry feet, and it ships with a removable two-piece diamond-pattern grating that supports drums or containers above the sump floor. Note: this unit does not have a drain spout.
Specifications & What's Included
- Material: High Density Polyethylene (HDPE)
- Sump capacity: 80 gallons (approximate)
- Overall dimensions: 50" L x 50" W x 16" H

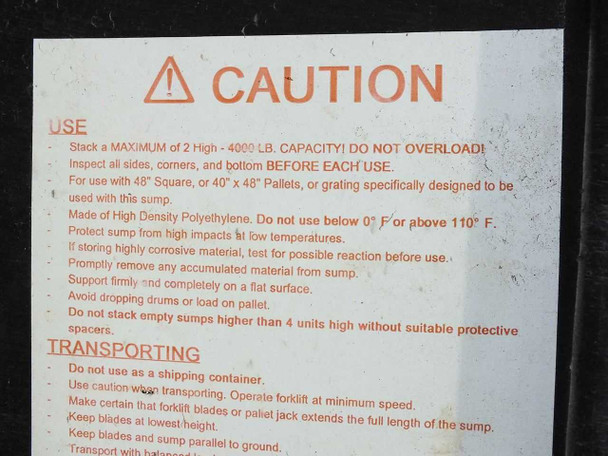

- Load capacity: 4,000 lb maximum (2 drums high stack max per label)
- Compatible pallet/grating size: 48" square or 40" x 48"
- Operating temperature range: 0°F to 110°F (per label)

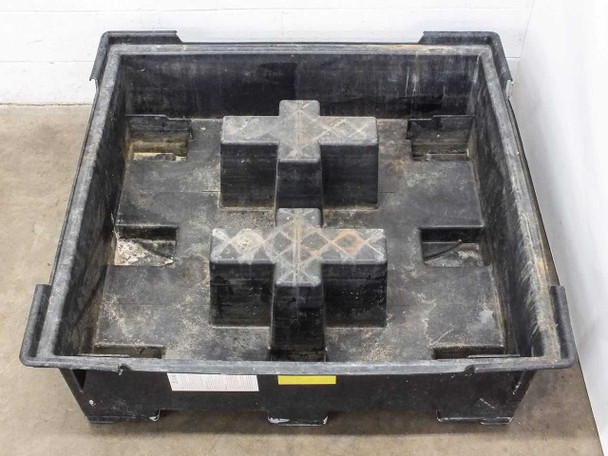

- Forklift-entry support pedestals: 4 (molded into sump floor)
- Includes: two-piece removable diamond-pattern black grating
- Drain spout: None (no drain)
Applications
HDPE spill containment sump pallets like this one are standard equipment in industrial facilities, chemical storage areas, warehouses, and manufacturing plants where drums or intermediate bulk containers (IBCs) holding hazardous, corrosive, or flammable liquids must meet secondary containment requirements. Secondary containment regulations under EPA and OSHA rules require that storage areas for many types of chemicals include a containment structure capable of holding the volume of the largest container in the area. These sumps are commonly used to store drums of solvents, acids, bases, oils, and other regulated materials. The HDPE construction resists a wide range of corrosive chemicals and does not rust, making it a practical long-term solution for both indoor and outdoor storage bays. The removable grating keeps drums elevated and allows visual inspection of any accumulated liquid in the sump basin below.
This 80-gallon HDPE chemical spill containment sump pallet has been inspected and is in good used condition. The sump basin is intact with no visible cracks or structural damage. The interior shows some residue deposits on the floor consistent with prior chemical storage use, as seen in the photos. Both grating panels are included and in good shape. Note that this unit does not have a drain spout. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
80 Gallon Spill Containment Sump Pallet |
Type: |
Chemical Spill Containment Sump Pallet |
SKU: |
46193 |
Condition: |
Used – Inspected |
Material: |
High Density Polyethylene (HDPE) |
Storage Capacity: |
80 Gallons |
Dimensions: |
50" L x 50" W x 16" H |
Load Capacity: |
4000 lb (2 drums high max) |
Drain: |
No drain spout |
Compatible Pallet Size: |
48" square or 40" x 48" pallets |
Application: |
Secondary chemical spill containment |
Form Factor: |
Floor / Pallet-style sump basin |
Seller Notes: |
Includes two-piece removable grating. No drain spout. |
Condition Notes: |
80-gallon HDPE spill containment sump pallet inspected and in good used condition. Basin intact, no cracks. Some interior residue from prior use. Both grating panels included. No drain spout. |
