3M 9000AJB 9100 Overhead Projector 2800 Lumen High/Low 10.5x10.5 Stage 120V

3M 9000AJB 9100 Overhead Projector 2800 Lumen High/Low 10.5x10.5 Stage 120V

The 3M 9000AJB is a transparency overhead projector from 3M's 9100 series, designed for classroom, boardroom, and presentation use. It features a closed doublet lens assembly that protects the lens and mirror from dust and handling, and a cool-running stage that keeps transparency film flat and prevents curling during extended sessions. The folding arm design allows the projector to collapse into a compact, self-contained unit for storage and transport.

Specifications & What's Included

• Make / Model: 3M 9000AJB (9100 Series)
• Lumen Output: 2,800 lumens
• Intensity Control: High / Low switch
• Stage Glass Size: 10.5 × 10.5 in.
• Lens Type: Doublet lens, closed design

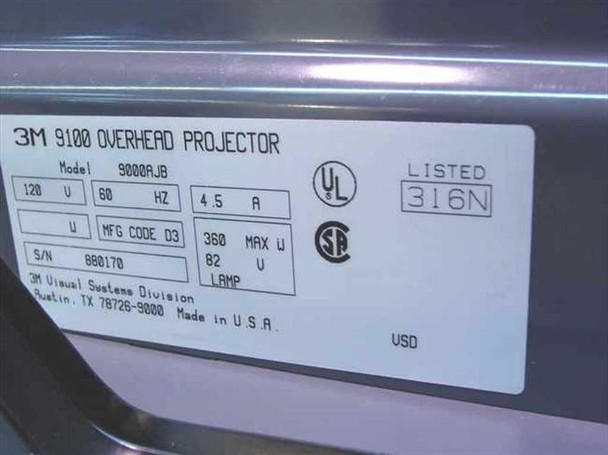

• Power: 120V, 60Hz, 4.5A
• Lamp: 2× ENX (GE) 360W / 82V — lamps not included
• UL Listed: 316N; CSA Listed
• Country of Manufacture: United States (3M Visual Systems Division, Austin, TX)
• Arm: Folding arm for compact storage
• Includes: Power cord
• Does not include: Replacement bulbs

Applications

Overhead projectors like the 3M 9100 series were the standard presentation tool in classrooms, lecture halls, training rooms, and conference rooms from the 1970s through the late 1990s, before digital LCD projectors became mainstream. They project transparent acetate sheets (transparencies or viewgraphs) onto a wall or screen, allowing a presenter to display hand-drawn diagrams, printed materials, or written notes to a group. The 3M 9100 line was a widely used mid-range model aimed at educational institutions and corporate environments. While largely replaced by digital projectors for new installations, overhead projectors remain in use at facilities that still maintain transparency-based training materials, as well as in vintage AV collections and theatrical lighting applications. ENX-type replacement bulbs remain readily available for continued use.
