Description
3M 716 Charge-Guard ESD Wrist Strap Tester ESDI Pass/Fail 2MΩ 5MΩ 10MΩ

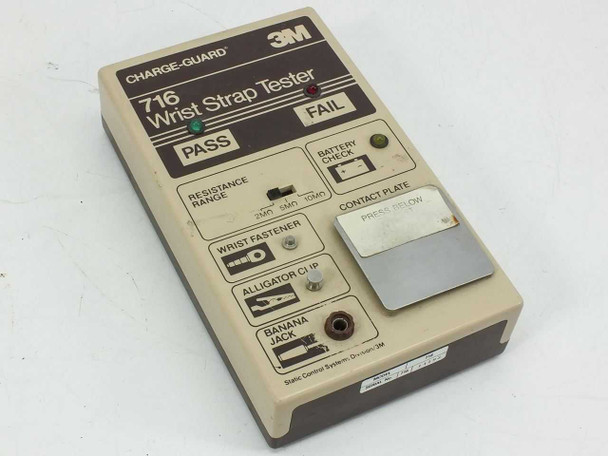

The 3M Charge-Guard 716 is a portable, battery-powered ESD wrist strap tester designed to verify that a wrist strap and its ground path meet resistance specifications before work on electrostatic-sensitive devices begins. It displays a clear PASS (green LED) or FAIL (red LED) result and allows the user to select from three resistance thresholds — 2MΩ, 5MΩ, or 10MΩ — to match the applicable ESD standard. Three input connection types are provided to accommodate different wrist strap connector styles. This unit does not include a wrist band.
Specifications & What's Included
- Brand: 3M — Charge-Guard / Static Control Systems Division
- Model: 716
- Standard: ESDI
- Resistance range: selectable — 2MΩ, 5MΩ, 10MΩ
- Pass indicator: green LED
- Fail indicator: red LED
- Input types: Wrist Fastener, Alligator Clip, Banana Jack
- Contact plate: metal plate with "Press Below" prompt
- Battery check: dedicated button and indicator

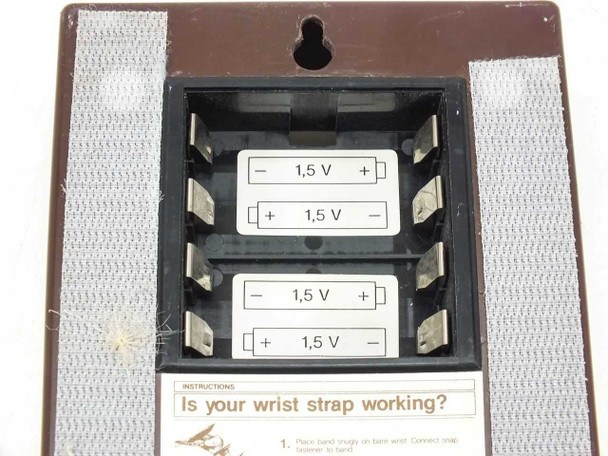

- Power: 4 × 1.5V flat-pack cells (battery compartment on rear)
- Form factor: handheld / portable
- Side connector: 3.5mm-style jack on lower edge
- Included: tester unit only — no wrist band
Applications
The 3M 716 Charge-Guard wrist strap tester is standard equipment in ESD-controlled work areas where technicians handle electrostatic-sensitive components — circuit boards, semiconductors, memory modules, hard drives, and similar devices. Before beginning work at an ESD-safe bench, the technician connects their wrist strap to the tester's contact plate (via wrist fastener, alligator clip, or banana jack), presses the plate, and reads the pass/fail result in seconds. The selectable resistance range lets it conform to various industry ESD control standards, including those requiring a 1MΩ ground resistor in the strap path. Introduced in the 1980s as part of 3M's Charge-Guard line, this type of handheld tester remains in daily use in electronics manufacturing, repair depots, semiconductor facilities, and military/aerospace shops where ESD protocols are enforced. It is also commonly used in field service and bench repair environments where a quick go/no-go strap check is required at the start of each shift.

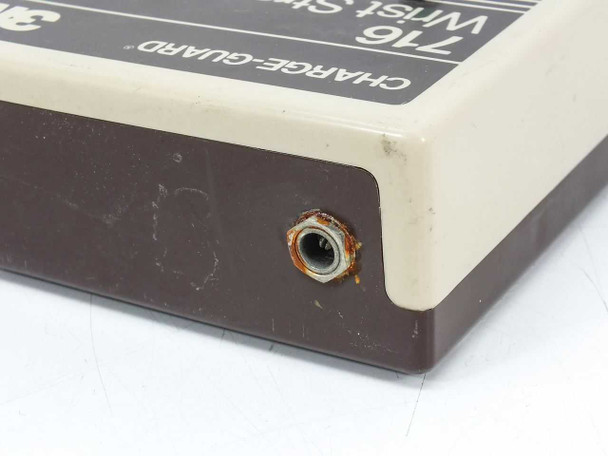

This 3M Charge-Guard 716 ESD Wrist Strap Tester has been inspected and appears to be in good used condition overall. The front panel, PASS/FAIL LEDs, resistance range selector, contact plate, and input connectors are all intact and show normal wear consistent with bench use. The photos do show a small rust spot on the contact plate surface and more notable corrosion around the side jack connector, both of which are visible in our photos. The battery compartment is intact with the instruction label present. This unit does not include a wrist band. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
3M |
Model: |
716 |
MPN: |
716 |
Type: |
ESD Wrist Strap Tester |
SKU: |
46255 |
Product Line: |
Charge-Guard |
Resistance Range: |
2MΩ, 5MΩ, 10MΩ (selectable) |
Input Types: |
Wrist Fastener, Alligator Clip, Banana Jack |
Indicators: |
PASS (green LED), FAIL (red LED) |
Power Source: |
Battery — 4 x 1.5V (AA or similar flat-pack cells) |
Standards: |
ESDI |
Form Factor: |
Handheld / Portable |
Contact Plate: |
Yes — metal contact plate with Press Below prompt |
Battery Check: |
Yes — dedicated Battery Check button and indicator |
Seller Notes: |
Tester unit only — no wrist band included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This 3M Charge-Guard 716 ESD Wrist Strap Tester is in good used condition. Front panel, LEDs, and selectors are intact. Minor rust on the contact plate and corrosion on the side jack connector visible in photos. No wrist band included. |
