Description
19" Full Height Rackmount Enclosure Cabinet w/ Fan Server Rack
This is a full-height 19-inch rackmount enclosure cabinet designed to house standard EIA 19" rack-mount equipment in server rooms, data centers, telecom closets, and equipment installations. The cabinet features a lockable front door, an integrated ceiling-mounted cooling fan, and caster wheels for floor mobility. The interior is fitted with standard threaded 19" mounting rails on both sides to accommodate rack-mount servers, switches, patch panels, UPS units, and other rack equipment.
Specifications & What's Included
- Rack standard: 19-inch EIA standard
- Height: Full height floor-standing enclosure
- Color: Black steel
- Front door: Single lockable door with latch and lock mechanism

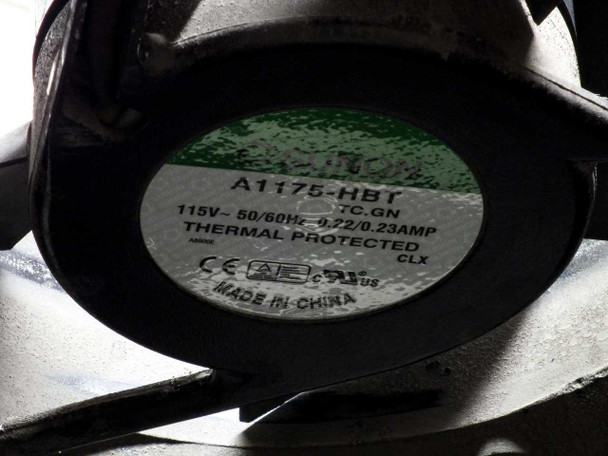

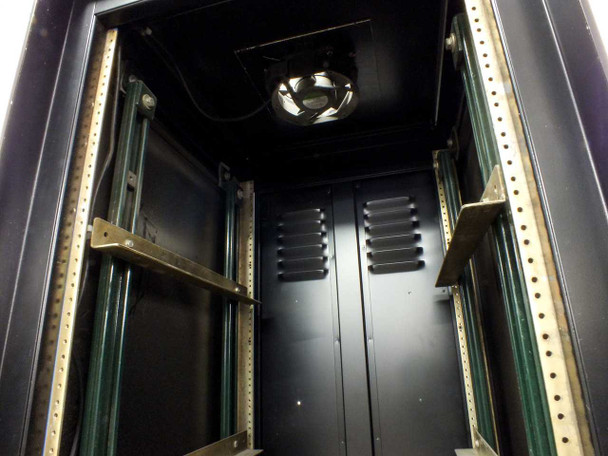

- Cooling: Integrated ceiling-mounted fan — model A1175-HBT
- Fan voltage: 115V AC, 50/60Hz
- Fan current draw: 0.72 / 0.23 AMP
- Fan protection: Thermal protected
- Fan certifications: CE, UL (cULus)
- Fan origin: Made in China
- Rear panel: Ventilation louvers
- Mobility: Bottom-mounted caster wheels
- Mounting rails: Dual 19" EIA standard threaded rails (both sides, full height)
- Cabinet only — no rack-mounted equipment included
Applications
Full-height 19-inch rackmount enclosures are standard infrastructure in server rooms, data centers, network operations centers, telecom equipment rooms, and industrial control environments. They provide a structured, secure housing for rack-mount servers, networking gear (switches, routers, patch panels), power distribution units (PDUs), KVM units, UPS systems, and other 1U–4U equipment. The integrated fan supports airflow through the rack to help manage heat from densely loaded equipment. The lockable door is common in shared or semi-public equipment rooms where access control matters. Floor-standing full-height cabinets like this one typically accommodate 42U or more of rack space and remain in active use across IT and industrial settings today.

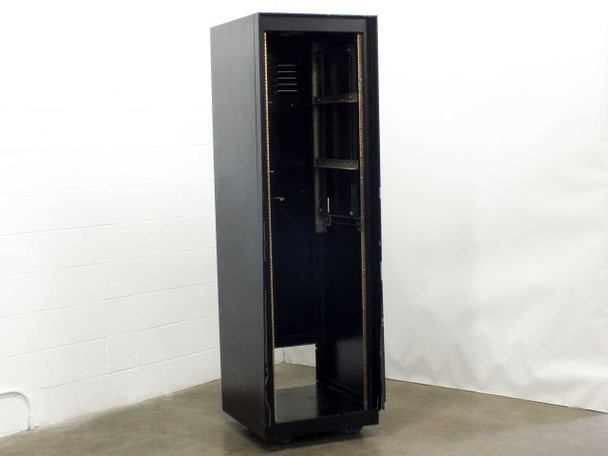

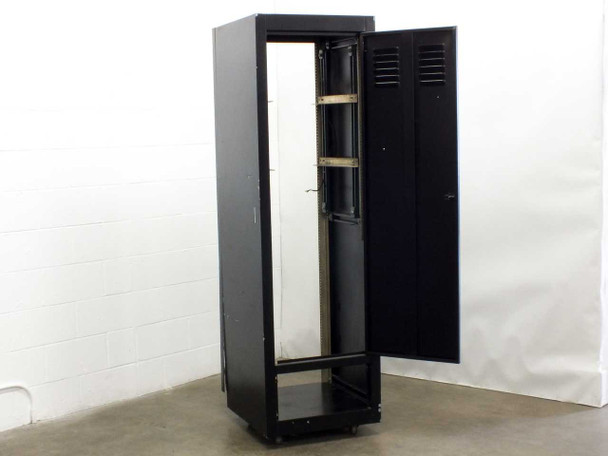

This 19" full-height rackmount enclosure cabinet has been inspected and is in good used condition. It was pulled from a working environment. The black steel cabinet shows normal wear consistent with data center or equipment room use — the exterior has scuffing and some chipping along the door edges and frame corners visible in the photos. The front door latches and the lock mechanism is present. The interior is clean with mounting rails intact. The integrated fan (model A1175-HBT, 115V, thermal protected) is installed and present. Caster wheels are attached to the base. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
19" Full Height Rackmount Enclosure Cabinet |
Type: |
Rackmount Enclosure Cabinet |
SKU: |
50449 |
Form Factor: |
Full Height Floor Standing Rack Enclosure |
Rack Compatibility: |
19-inch EIA standard rack equipment |
Color: |
Black |
Door Type: |
Lockable Front Door |
Cooling: |
Integrated Fan — San Ace or similar, model A1175-HBT |
Fan Model: |
A1175-HBT |
Fan Voltage: |
115V AC, 50/60Hz |
Fan Current: |
0.72 / 0.23 AMP |
Fan Protection: |
Thermal Protected |
Mobility: |
Caster wheels (bottom-mounted) |
Mounting Rails: |
19-inch EIA standard threaded mounting rails |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Cabinet only; no rack equipment included. Fan installed and present. |
Country/Region of Manufacture: |
China |
Condition Notes: |
19" full-height rackmount enclosure cabinet in good used condition. Pulled from a working environment. Shows normal wear with scuffing on door edges and corners. Fan (A1175-HBT, 115V) installed. Casters present. |
