Generic

11062A 9kVA Three-Phase Dry-Type Transformer 200/250/400/500V Primary

(No reviews yet) Write a Review
SKU:
47193
MPN:
11062A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
185.00 LBS
Shipping:
Calculated at Checkout
  • 11062A 9kVA three-phase transformer front view showing three black coil cores on steel frame, sitting on green carpeted dolly

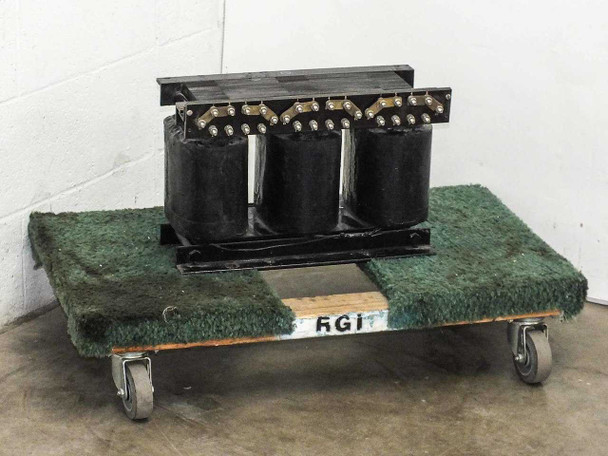

  • 11062A 9kVA three-phase transformer rear/side angle showing bolt-down lug terminal block across top of frame
  • 11062A transformer side view showing full lug terminal array and rating plate on side of steel frame

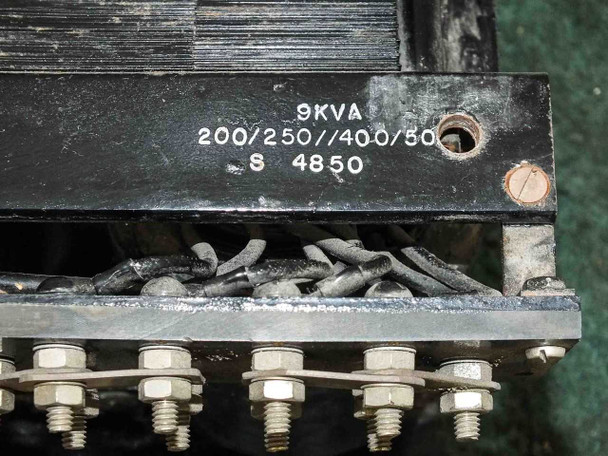

  • 11062A transformer rating plate close-up showing 9KVA, 200/250/400/500V primary markings and serial S 4850

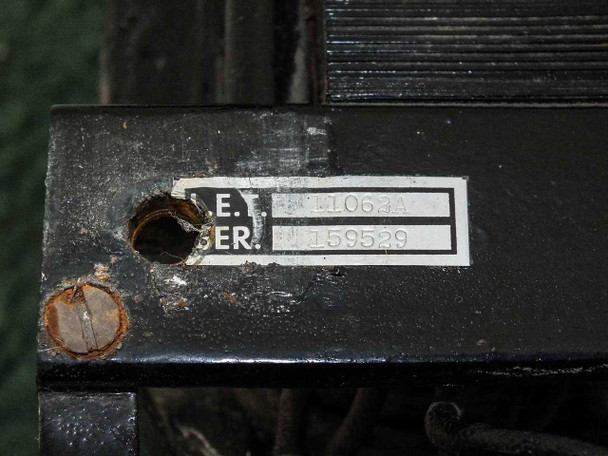

  • 11062A transformer manufacturer label close-up showing model 11062A and serial/GER number 159529 on damaged label plate
$600.00
Was: $1,200.00
Current Stock: 1

Sold Out

Description

11062A 9kVA Three-Phase Dry-Type Transformer 200/250/400/500V Primary

A three-phase dry-type transformer rated at 9 kVA with multi-tap primary voltage selection. This air-cooled unit converts power between 200V, 250V, 400V, or 500V primary inputs and is mounted for floor or stationary installation.

Specifications & What's Included

  • Power Rating: 9 kVA
  • Phase: Three-Phase
  • Primary Voltage: 200/250/400/500V AC (multi-tap)
  • Cooling Method: Dry-Type (Air-Cooled)
  • Terminal Type: Bolt-Down Lug Terminals
  • Form Factor: Open Core / Floor Mount
  • Unit only; no enclosure included

Applications

Dry-type transformers of this class are used in industrial facilities, machine tool operations, and telecom infrastructure for voltage stepping and distribution. The multi-tap primary design allows connection to varying supply voltages common in retrofit and geographic relocation scenarios. These transformers support machinery, motor control systems, and control panel power conversion in manufacturing and telecommunications environments.

Condition: Used
This 11062A 9kVA three-phase transformer has been inspected and is in good used condition. It was pulled from a working environment where it was in active service. The core and coils are intact with no visible damage. The steel frame shows surface wear, scuffing, and minor corrosion consistent with industrial use. The bolt-down lug terminals are present and show some oxidation and wear at the connection points. The manufacturer label plate has a punched hole and surface damage, though the model and serial numbers remain legible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
11062A
MPN:
11062A
Type:
Dry-Type Three-Phase Transformer
SKU:
47193
Phase:
Three Phase
Power Rating:
9 kVA
Primary Voltage:
200/250/400/500V AC (multi-tap)
Voltage Configuration:
Multi-Tap Primary
Cooling Method:
Dry-Type (Air Cooled)
Form Factor:
Open Core / Floor Mount
Terminal Type:
Bolt-Down Lug Terminals
Serial Number Ref:
S 4850 (rating plate) / 159529 (label)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no enclosure. Sold as shown.
Condition Notes:
This 11062A 9kVA 3-phase dry-type transformer was pulled from a working environment and inspected. Core and coils intact. Frame shows surface wear and minor corrosion. Lug terminals present with oxidation. Good used condition.
