Description

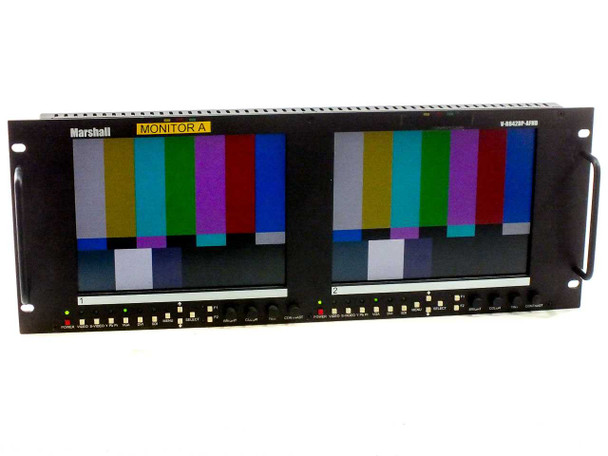

Marshall V-R842DP-AFHD Dual Screen 2.4 MegaPixel HD SD Monitor Set 8.4 in
Power supply not included.
From the manufacturer:
Occupying only 4 rack units of a standard 19" EIA equipment rack, the V-R842DP-AFHD represents leading edge technology in LCD imaging for broadcast and professional video applications. Two high resolution 2.4 MegaPixel TFT screens with completely digital signal processing provide image reproduction that exceeds all CRT displays available in a similar form factor. All SMPTE/ITU video standards and signal types are accepted and displayed on each screen of this model. Analog signals are digitized using an advanced 10-bit process on each signal path with 4x oversampling and adaptive 5-line comb filter with exacting color space conversion. All video formats are scaled to fit onscreen in the highest resolution using a state-of-the-art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available. Additional features include setup memory, Zoom function, 6 Frame Marker Overlays, Blue Gun, and direct access for all adjustment and selection functions.
- High Definition 2.4 MegaPixel screens with 1024 x 768 resolution
- 100% digital processing
- Analog signals converted to digital
- High resolution scaling of all images
- CRT style viewing radius -- 170 degrees in all directions provides superior visibility when the viewer is not directly in front of the screen
- 400 candelas per square meter (cd/m) luminance produces enhanced image quality in varying light and viewing conditions
- 400:1 ratio of contrast between black and white luminance values
- 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats
- Works with all SMPTE/ITU serial digital production
- formats and frame rates
- Blue Gun for color adjustment
- Ready to mount in 19" rack out-of-the-box
- Three-color self-powered tally system provided for each panel
- Built-in Color Bar Generator
- Zoom function
- Built-in Color Bars
- 6 Frame Marker Overlays with Center Mark
- Easy-to-see three color tally indicators
- Adjustment Settings Memory
- Calibrated Color Temperature and Gamma
Condition: Used
This used rackmount display screen item has been tested to be in working order using a hand-held video signal source. It requires a unique power supply that is not included. Please view our photo set and contact us if you have any questions.
