Marsh-McBirney

Marsh-McBirney Model 500 Universal Surface Readout Flowmeter 110V 60Hz

(No reviews yet) Write a Review
SKU:
24314
MPN:
Model 500
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
14.00 LBS
Shipping:
Calculated at Checkout
  • Marsh-McBirney Model 500 Universal Surface Readout front panel — three analog meters visible, power switch and indicator lights, rack-mount chassis

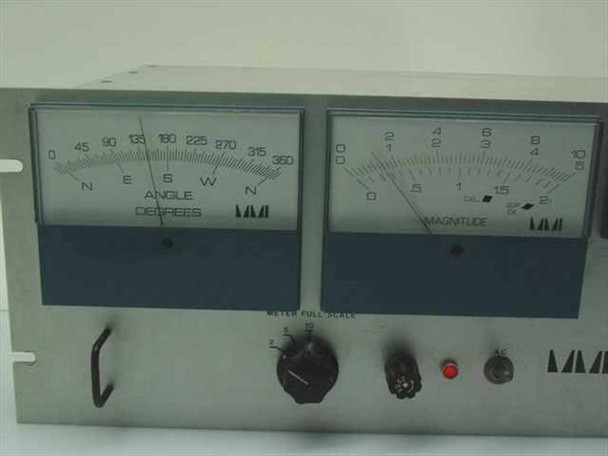

  • Marsh-McBirney Model 500 front panel close-up — left meter shows Angle in Degrees (0–360, N/E/S/W), right meter shows Magnitude scale, red indicator light and rotary selector visible
  • Marsh-McBirney Inc. label on unit — reads Universal Surface Readout, Made in USA, Gaithersburg MD
  • Marsh-McBirney Model 500 rear and bottom view — four circular connectors and one multi-pin DIN connector on rear panel, rack-mount ears visible

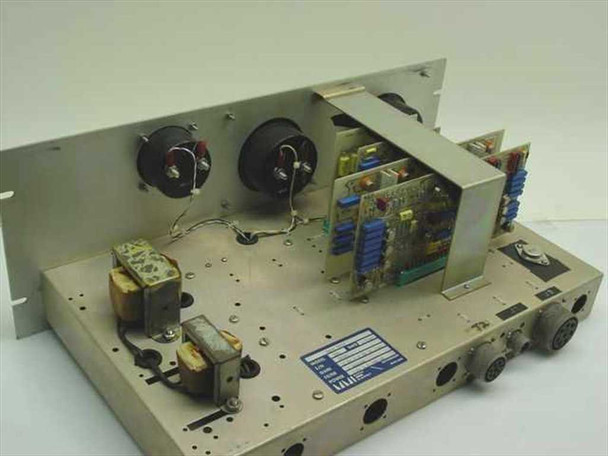

  • Marsh-McBirney Model 500 internal view with top cover removed — two transformers, circuit board assembly, wiring harness, and component layout visible

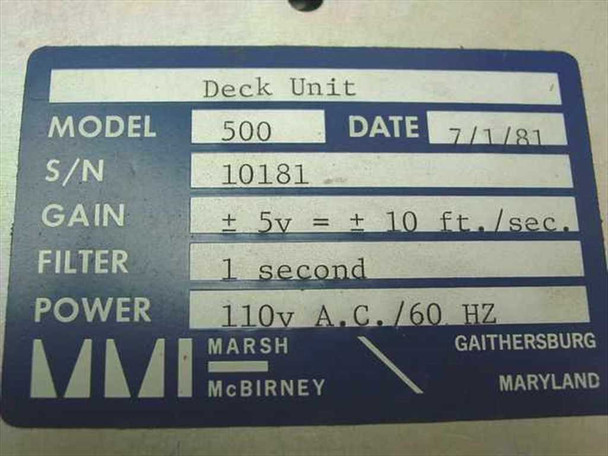

  • Marsh-McBirney Model 500 data plate — Model 500, Date 7/1/81, S/N 10181, Gain ±5V = ±10 ft./sec., Filter 1 second, Power 110V AC/60Hz, Marsh-McBirney Gaithersburg Maryland
  • Marsh-McBirney Model 500 internal view from above — green circuit boards, capacitors, wiring, and chassis construction visible with cover removed
$21.50
Was: $60.00
Current Stock: 1

Sold Out

Description

Marsh-McBirney Model 500 Universal Surface Readout Flowmeter 110V 60Hz

Universal surface readout display unit for measuring open channel flow velocity and direction. Accepts input from Marsh-McBirney current meters and displays dual analog readings for angle and magnitude of water movement.

Specifications & What's Included

  • Gain: ±5V = ±10 ft./sec.
  • Display: Dual analog panel meters (angle and magnitude)
  • Filter: 1 second response time
  • Power: 110V AC, 60Hz
  • Form factor: Rack mount deck unit
  • Unit only—no probe or accessories included

Applications

The Model 500 was designed for hydrological field measurement of surface water velocity in open channels, streams, and rivers. It pairs with Marsh-McBirney current meters to provide real-time flow data for water resources monitoring, hydraulic studies, and environmental assessments. Common in USGS operations and water management programs through the 1980s and beyond.

Condition: Used
This Marsh-McBirney Model 500 Universal Surface Readout has been inspected and is in good used condition. The aluminum rack-mount chassis shows typical age-related wear consistent with a unit manufactured in 1981 — light surface scuffing on the front panel and chassis exterior. The two analog panel meters (Angle and Magnitude) appear intact with no cracked or broken lenses visible in the photos. The rear connectors and multi-pin DIN connector show normal use wear. The interior circuit boards and components appear complete and undamaged based on the photos. Sold as inspected. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Marsh-McBirney
Model:
500
MPN:
500
Type:
Universal Surface Readout / Flowmeter Display
SKU:
24314
Condition:
Used – Inspected
Country/Region of Manufacture:
United States
Form Factor:
Rack Mount
Power Requirements:
110V AC, 60Hz
Gain:
±5V = ±10 ft./sec.
Filter:
1 Second
Display Type:
Dual Analog Panel Meters (Angle & Magnitude)
Measurement Type:
Surface Water Velocity / Flow Direction & Magnitude
Application:
Open Channel Flow Measurement, Hydrology, Water Resources
Sub-Unit Description:
Deck Unit
Manufacture Date:
7/1/81
Seller Notes:
Unit only — no accessories or probe included. Inspected, in good condition.
Condition Notes:
Marsh-McBirney Model 500 Universal Surface Readout inspected and in good used condition. Chassis shows light age-related wear; analog meters intact, rear connectors present. Manufactured 7/1/81. Sold as inspected. Contact us with any questions.
