Description
Halco H2237A00-AAABABA HEPA Air Filter 22x37x3 99.99% 834 CFM Clean Room

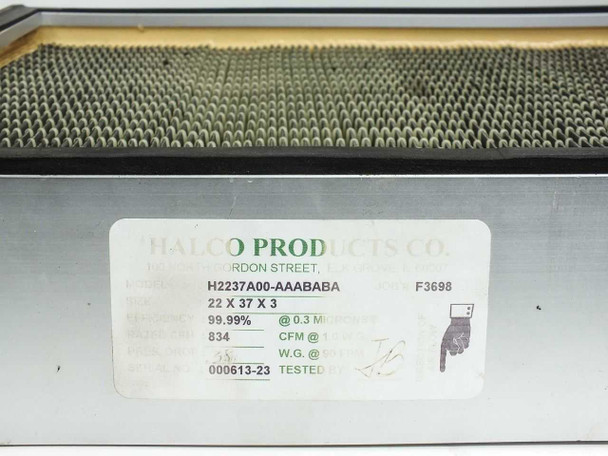

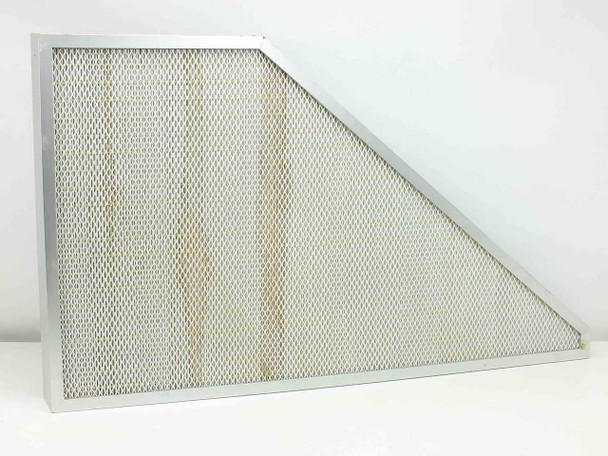

The Halco Products H2237A00-AAABABA is a triangular HEPA-grade panel air filter measuring 22 x 37 x 3 inches, with a rated filtration efficiency of 99.99% at 0.3 microns and an airflow rating of 834 CFM. The unit features an aluminum frame housing pleated HEPA media with corrugated separator fins on the downstream face.
Specifications & What's Included
- Manufacturer: Halco Products Co.
- Model / Part Number: H2237A00-AAABABA
- Filter Dimensions: 22 x 37 x 3 in.
- Filter Shape: Triangular (right-triangle profile)
- Filter Efficiency: 99.99% @ 0.3 microns (HEPA grade)
- Airflow Rating: 834 CFM
- Frame Material: Aluminum
- Media: Pleated HEPA media with corrugated separator fins
- Item Includes: Filter unit only; no housing or mounting hardware included
Applications
HEPA panel filters of this type are used in clean room air handling systems, laminar flow hoods, fan filter units (FFUs), and HVAC installations where high-efficiency particulate removal is required. The 99.99% efficiency rating at 0.3 microns meets the HEPA standard and is suitable for semiconductor fabrication, pharmaceutical manufacturing, life sciences labs, and other controlled-environment applications that require removal of fine particulates, aerosols, and airborne contaminants. The triangular profile on this filter suggests it is designed for a specific equipment enclosure or angled ceiling/wall installation where a standard rectangular filter would not fit — a common design in modular clean room ceiling systems and certain industrial air handlers. Buyers typically source replacement filters like this for ongoing maintenance of existing clean room infrastructure.

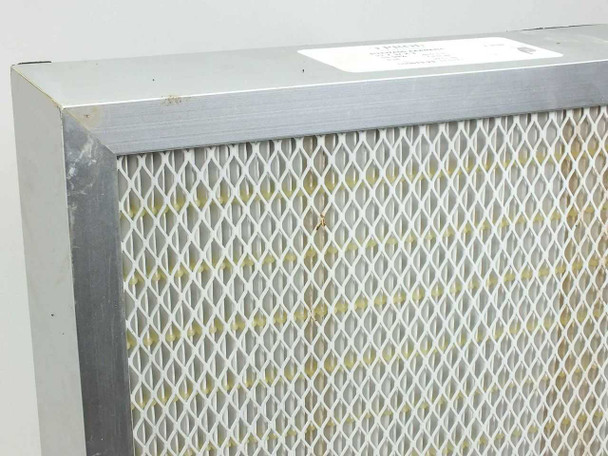

This Halco H2237A00-AAABABA HEPA air filter has been inspected and is in good used condition. The aluminum frame is intact and shows only minor surface wear. The pleated HEPA media appears intact with no visible tears, punctures, or major contamination on either face. Some light yellowing is visible on the upstream face of the filter media, consistent with prior service use. The rear black media and gold separator fins appear in good shape with no obvious damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Halco Products Co. |
Model: |
H2237A00-AAABABA |
MPN: |
H2237A00-AAABABA |
Type: |
HEPA Air Filter |
SKU: |
46194 |
Filter Dimensions: |
22 x 37 x 3 in. |
Filter Shape: |
Triangular |
Filter Efficiency: |
99.99% @ 0.3 Microns |
Airflow Rating: |
834 CFM |
Filter Media: |
HEPA pleated media |
Frame Material: |
Aluminum |
Application: |
Clean Room, HVAC, Laminar Flow |
Seller Notes: |
Filter only; no housing included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Halco H2237A00-AAABABA HEPA filter inspected and in good used condition. Aluminum frame intact, minor surface wear. Pleated media appears intact; light yellowing on upstream face from prior use. No visible tears or damage. |
