Description

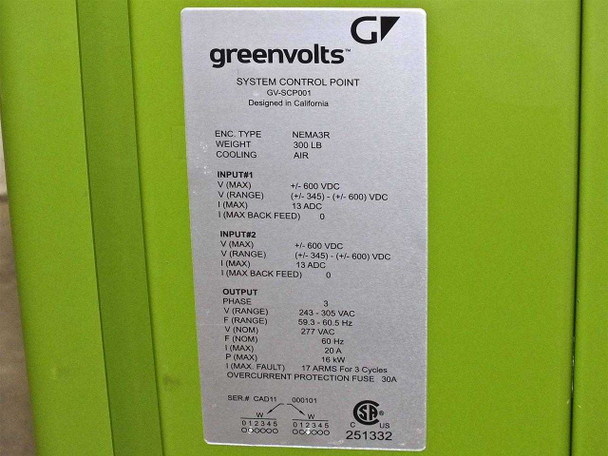

GreenVolts GV-SCP001 16kW 480VAC 3-Phase Grid-Tie Solar Inverter w/ MC4 Cables

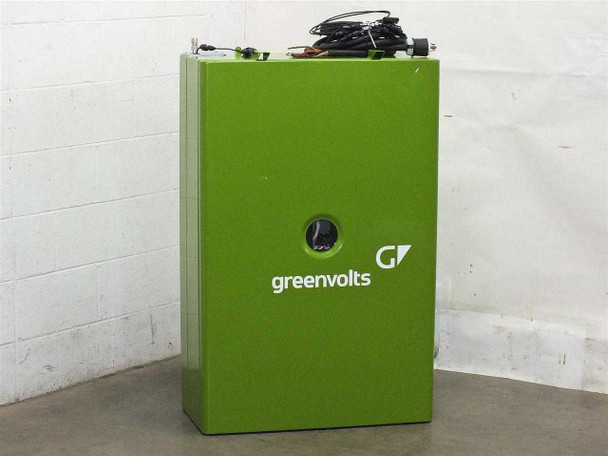

Grid-tie inverter rated for 16 kW output at 480 VAC 3-phase. Converts DC power from photovoltaic arrays to AC power for direct interconnection with utility grids. Floor-standing cabinet design with integrated switching, protection, and control components.
Specifications & What's Included
- 16 kW rated power output
- 480 VAC 3-phase output with twist-lock connectors

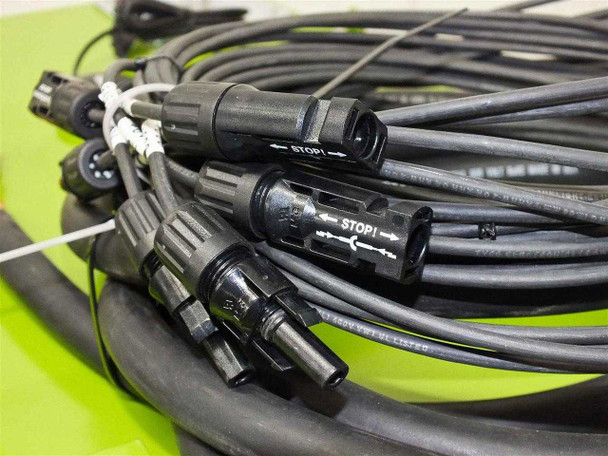

- MC4 photovoltaic solar input connectors and cables
- CAN bus controller board with DB9 and USB interfaces
- GlobalSat BU-353 USB GPS receiver for time synchronization
- Internal Schneider Electric TeSys LC1 contactors and Ferraz Shawmut fused disconnect

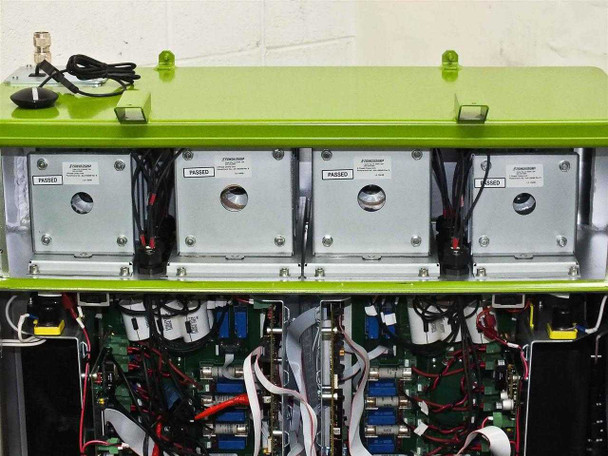

- Powertronix 3-phase choke and Hammond 500VA control transformer
- Cabinet: 32" W × 19" D × 46" H
Applications
Grid-tie inverters of this class are used in commercial and utility-scale solar photovoltaic installations to synchronize DC array output with three-phase utility power distribution. The 480 VAC output rating supports medium-voltage distribution systems common in industrial facilities and utility substations. GPS receiver enables time-of-use data logging and grid synchronization protocols. Typical applications include rooftop solar farms, ground-mount arrays, and behind-the-meter commercial installations requiring direct utility interconnection without battery storage.

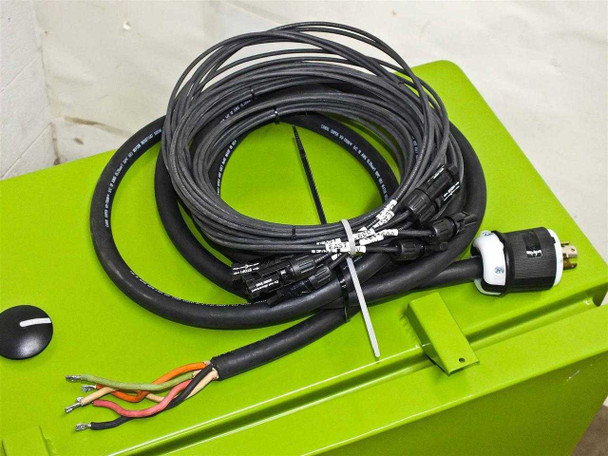

This GreenVolts GV-SCP001 16kW 480VAC grid-tie solar inverter is being sold as-is from a manufacturer liquidation. The unit has not been tested and no functionality can be guaranteed. It appears physically complete with all internal boards, wiring, and components present. No documentation or support is available from the manufacturer. No additional support or spare parts can be sourced from GreenVolts. The unit includes a coiled MC4 solar input cable harness, a twist-lock AC output cable, and a GlobalSat BU-353 USB GPS receiver. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
GreenVolts |
Model: |
GV-SCP001 |
MPN: |
GV-SCP001 |

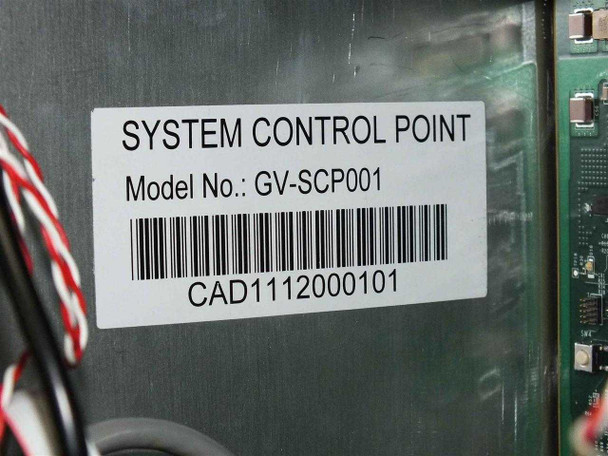

Serial Number / Unit ID: |
CAD1112000101 |
Type: |
Grid-Tie Solar Inverter |
SKU: |
44994 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |

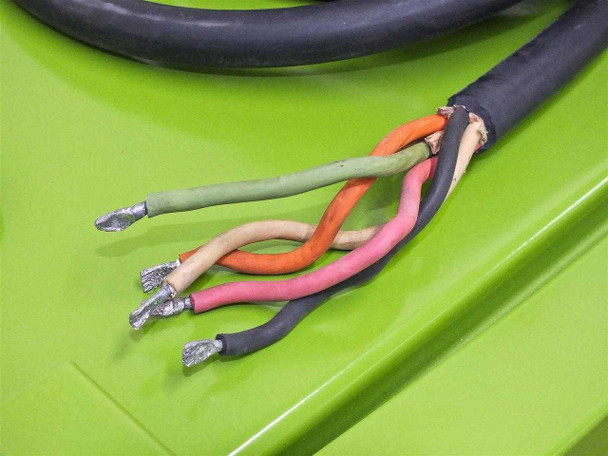

Includes MC4 solar input cables, GPS receiver (BU-353), and input wiring harness |
Output Voltage: |
480 VAC, 3-Phase |
Power Rating: |
16 kW |
Phase: |
Three Phase |
Inverter Type: |
Grid-Tie / Grid-Connected |

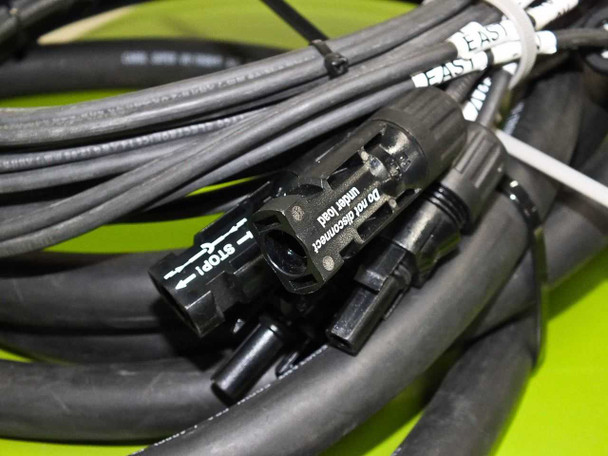

Input Connector: |
MC4 (photovoltaic solar connectors) |
Output Connector: |

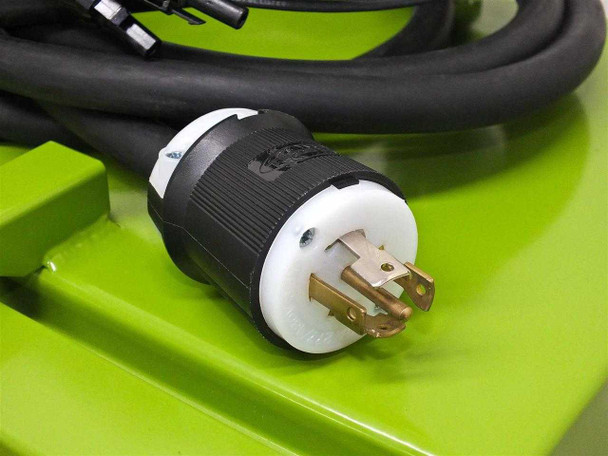

Twist-lock plug (AC output harness visible) |
Form Factor: |

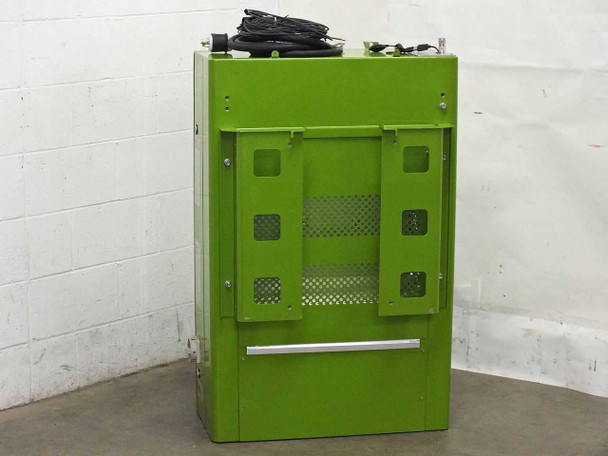

Floor-Standing Cabinet |
Dimensions: |
32" W x 19" D x 46" H |

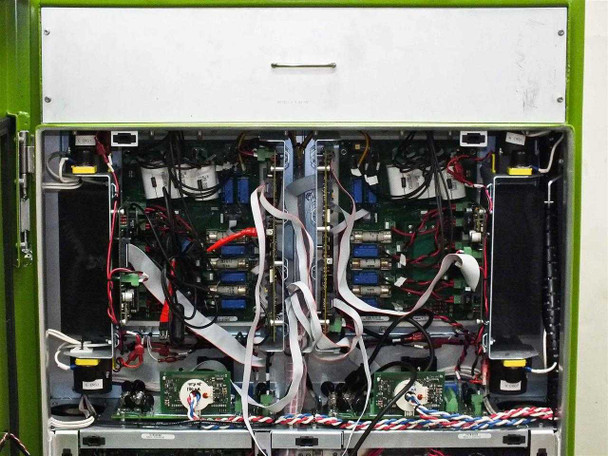

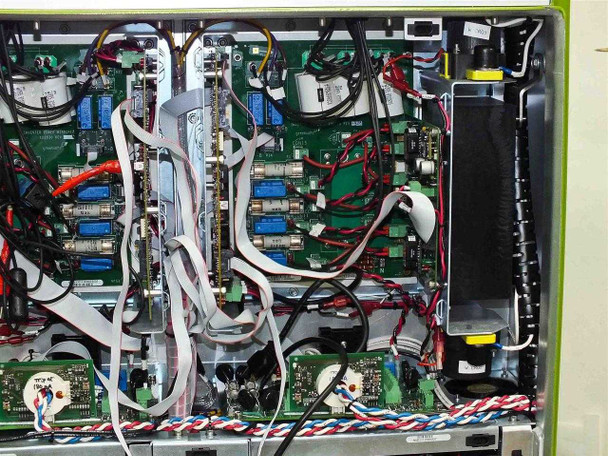

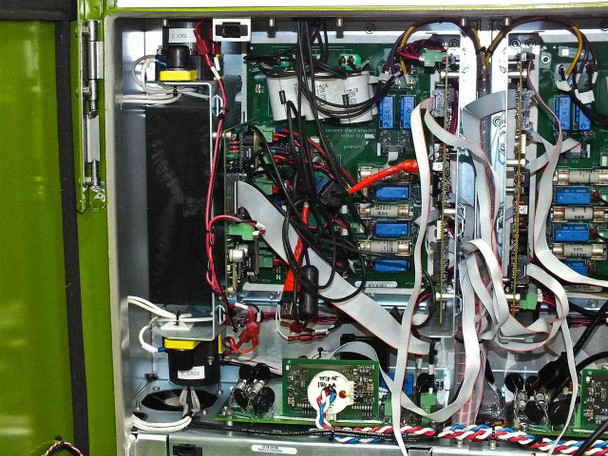

Internal Components: |

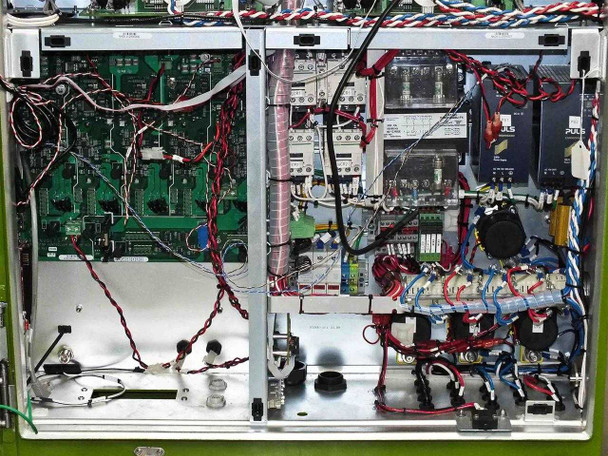

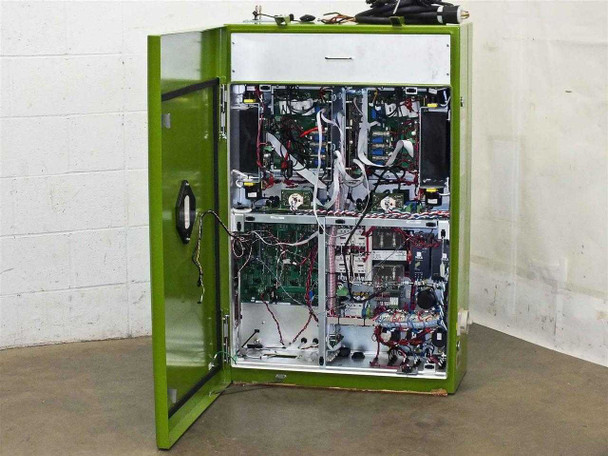

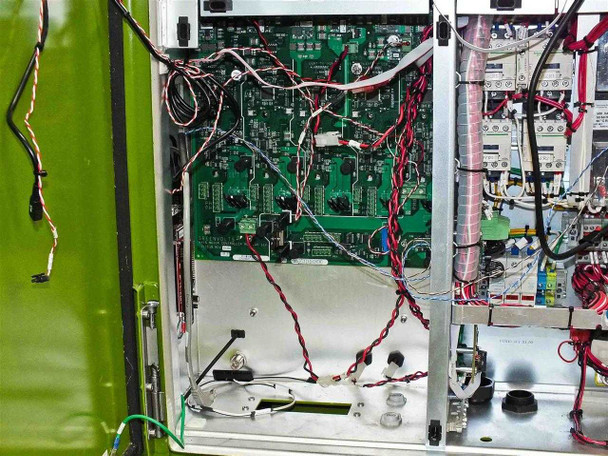

Multiple inverter PCBs, Schneider Electric contactors, PULS DIN rail power supplies |
Choke Unit: |

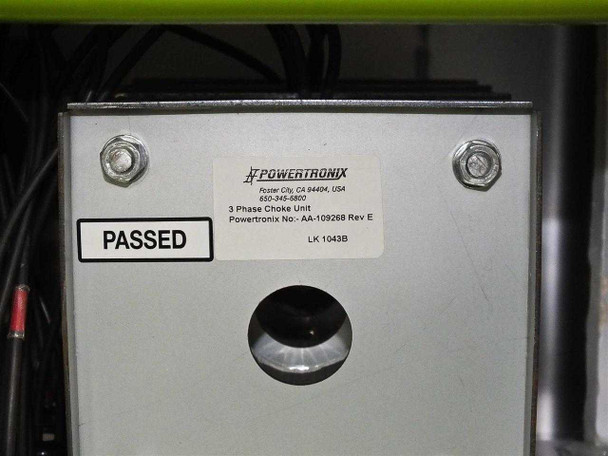

Powertronix 3-Phase Choke, P/N AA-109268 Rev E |
Control Interface: |

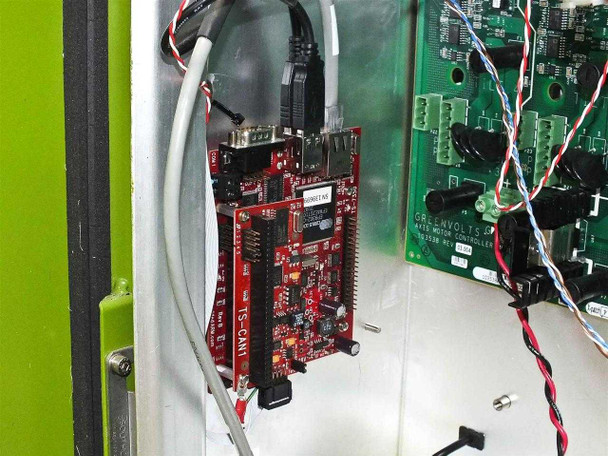

CAN bus controller board (TS-CAN1 module visible), DB9 and USB connectors |
Motor Controller Board: |
GreenVolts AXIS Motor Controller (label visible on internal PCB) |

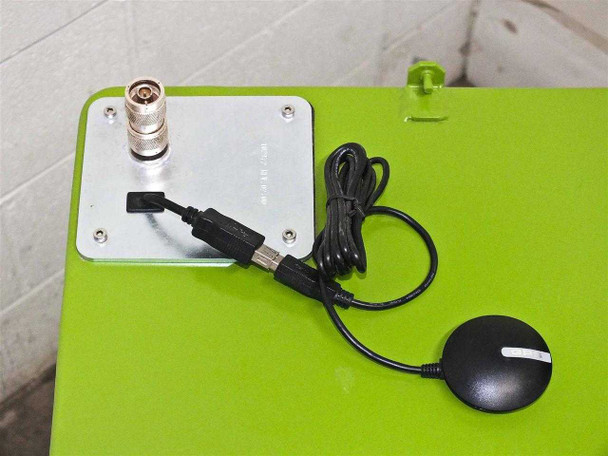

GPS Receiver Included: |

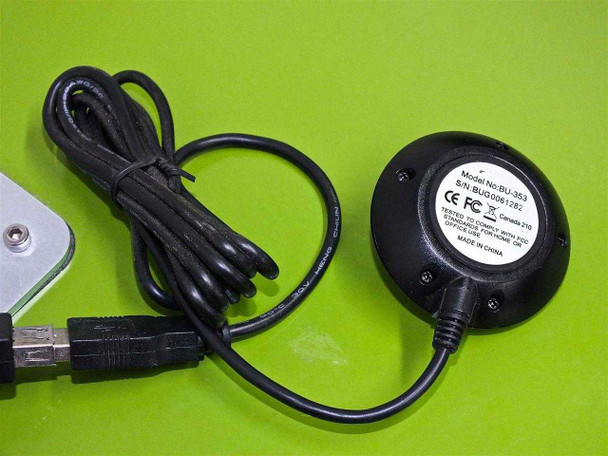

GlobalSat BU-353 USB GPS receiver |
Control Power Supply 1: |

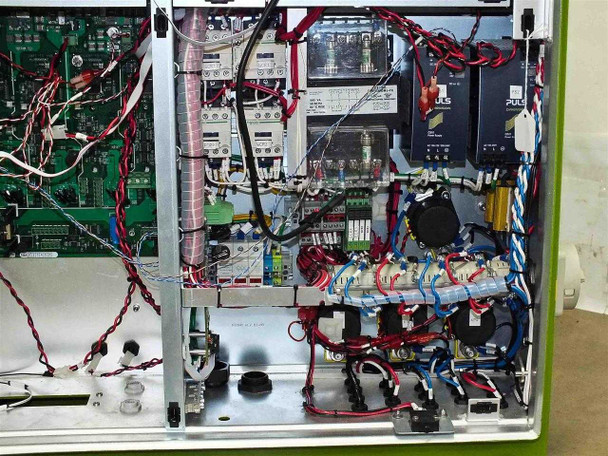

PULS Dimension CS10 DIN rail power supply |
Control Power Supply 2: |
PULS Dimension QS20 DIN rail power supply |

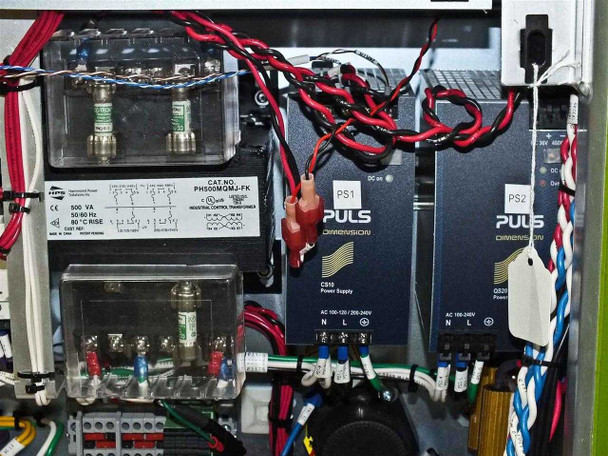

Transformer: |
Hammond Power Solutions 500VA, 50/60Hz industrial control transformer |
Fusing: |

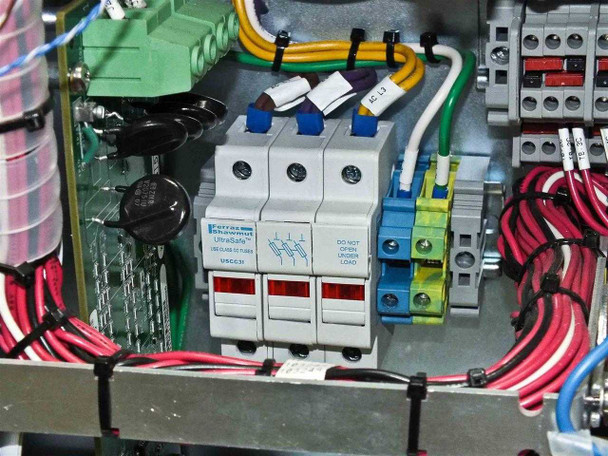

Ferraz Shawmut UltraSafe 3-pole fused disconnect visible internally |
Contactors: |

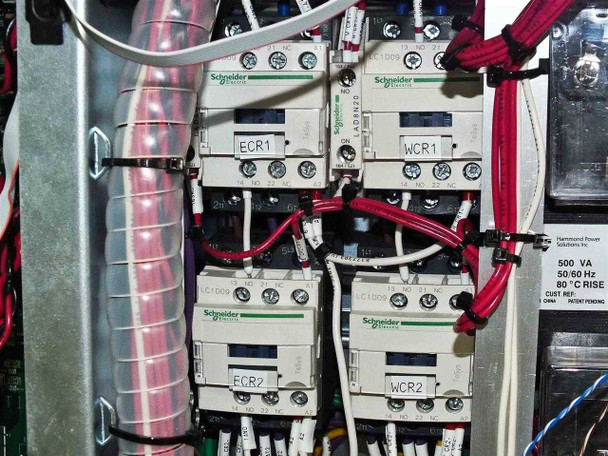

Schneider Electric TeSys LC1 series (ECR1, ECR2, WCR1, WCR2 labeled) |
Application: |
Utility-scale / commercial solar PV grid interconnection |
Country/Region of Manufacture: |
United States |
Condition Notes: |
GreenVolts GV-SCP001 16kW 480V solar inverter sold as-is from manufacturer liquidation. Untested — no functionality guaranteed. Appears physically complete. Includes MC4 cables and GPS receiver. No documentation available. |
