Elite Engineering 5-Station Electrode Test Station Semiconductor Lab

(No reviews yet) Write a Review
SKU:
24691
MPN:
5 Station
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
36.00 LBS
Shipping:
Calculated at Checkout

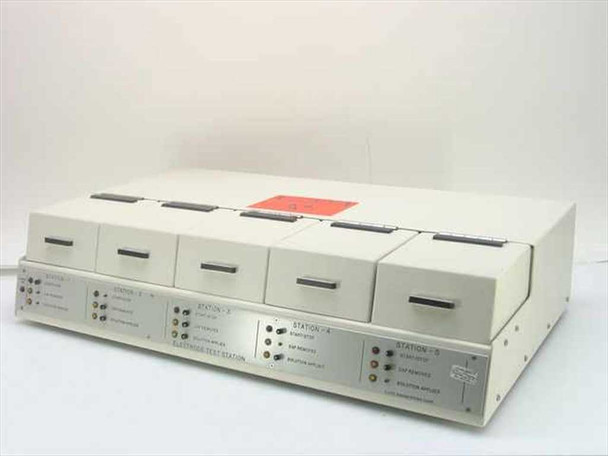

  • Elite Engineering 5-Station Electrode Test Station front view showing all five station bays with indicator lights and red label on top

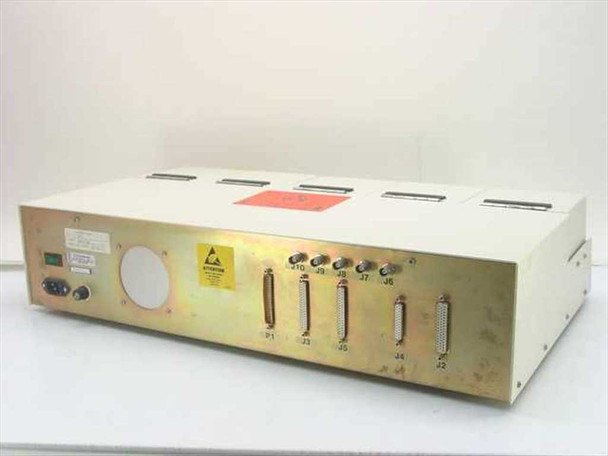

  • Elite Engineering Electrode Test Station rear panel view showing IEC power inlet, rocker switch, fuse, ESD warning, and connectors P1 J2-J5 D-sub and J6-J10 BNC
  • Close-up of Station 3 front panel showing Start/Stop, Cap Removed, and Solution Applied indicator lights and ELECTRODE TEST STATION label

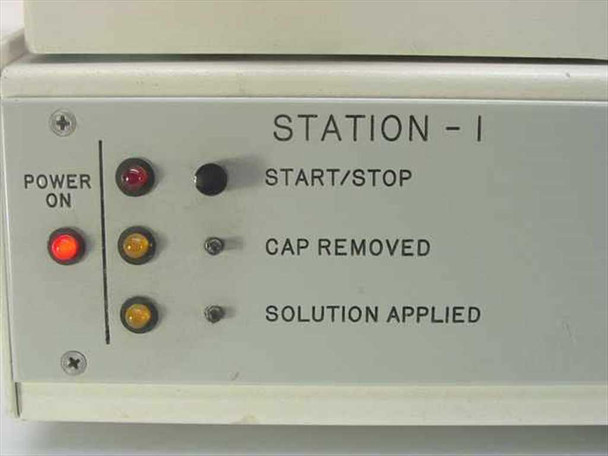

  • Close-up of Station 1 front panel showing Power On indicator, Start/Stop, Cap Removed, and Solution Applied indicator lights with missing button caps

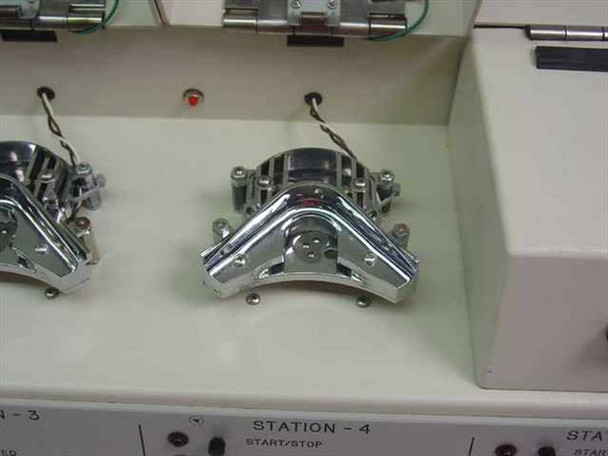

  • Interior top-down view of Stations 3 and 4 showing chrome electrode fixture mechanisms mounted in the station bays
  • Elite Engineering Electrode Test Station rear connector panel close-up showing D-sub connectors P1, J2, J3, J4, J5 and BNC connectors J6 through J10
  • Rear panel label showing Calibration by EEC dated 2/28/92, Elite Engineering company address in Westlake Village CA, and serial number SN5-002
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Elite Engineering 5-Station Electrode Test Station Semiconductor Lab

Benchtop electrode test station with five independent testing stations. Used for electrode testing and solution application in semiconductor laboratory environments.

Specifications & What's Included

  • Model: SN5-002 | MPN: 24691
  • 5 independent test stations with per-station indicators (Start/Stop, Cap Removed, Solution Applied)
  • D-sub connectors: P1, J2, J3, J4, J5
  • BNC connectors: J6, J7, J8, J9, J10
  • IEC C14 power inlet with fuse holder; illuminated green rocker power switch
  • Calibrated by EEC, calibration date 2/28/92
  • Made in USA

Applications

This station type is used for systematic electrode testing and characterization in semiconductor fabrication and research labs. The multi-station configuration allows simultaneous or sequential testing of electrode samples with controlled solution application. Equipment of this class supports quality control and process development in semiconductor manufacturing and materials testing.

Condition: Used
This Elite Engineering 5-Station Electrode Test Station has been inspected and appears to be in good used condition overall. It was pulled from a working environment. Some stations are missing button caps on the front-panel indicator switches, as shown in the photos. The chrome electrode fixture mechanisms visible inside the station bays appear intact. The enclosure shows light surface wear and discoloration consistent with age — the unit was calibrated by EEC in February 1992 per the rear label. All rear connectors (D-sub and BNC) appear present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Elite Engineering
Model:
5-Station Electrode Test Station
MPN:
SN5-002
SKU:
24691
Type:
Electrode Test Station
Number of Stations:
5
Condition:
Used – Pulled from Working Environment
Form Factor:
Benchtop
Per-Station Indicators:
Start/Stop, Cap Removed, Solution Applied
Rear Connectors:
P1, J2, J3, J4, J5 (D-sub), J6, J7, J8, J9, J10 (BNC)
Power Connector:
IEC C14 inlet with fuse holder
Power Switch:
Illuminated rocker switch (green)
Calibration By:
EEC
Calibration Date:
2/28/92
Country/Region of Manufacture:
United States
Manufacturer Address:
741 Lakefield Rd., Suite B, Westlake Village, CA 91361
Application / Use Case:
Electrode testing, semiconductor lab, solution application
Seller Notes:
Some stations missing button caps. Pulled from working environment.
Condition Notes:
Elite Engineering 5-Station Electrode Test Station. Pulled from working environment. Some stations missing button caps. Inspected, light surface wear. Calibration label dated 2/28/92. Please contact us with questions.
