Electro Pneumatic Punch Stainless Steel Clean Room Benchtop SMC AV2000 24VDC
This is a benchtop electro pneumatic punch housed in a stainless steel clean room enclosure. The unit uses pneumatic actuation controlled by 24VDC solenoid valves to drive a punch tool downward against a work piece, making it suited for precision punching operations in particle-sensitive manufacturing environments. The all-stainless construction keeps contamination risk low and allows for easy wiping and cleaning between runs.
Specifications & What's Included
- Type: Electro pneumatic punch press
- Form factor: Benchtop / freestanding
- Housing material: Brushed stainless steel clean room enclosure
- Actuation: Pneumatic cylinder, electro-pneumatically controlled
- Solenoid valves: 2x 24VDC solenoid valves (SMC-style valve manifold)
- Soft-start pneumatic valve: SMC AV2000
- Suction filter: SMC ZFA200-02L BP – negative pressure, Japan

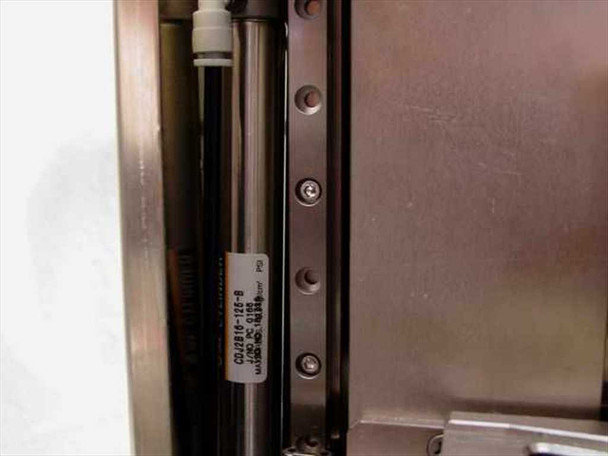

- Pneumatic cylinder: SMC CDJ2B16-12E-B
- Sensor: Keyence fiber optic amplifier/sensor module with LED indicators
- Control relays/timers: Omron relay and timer modules (internal)
- Terminal block: Multi-position terminal strip with full internal wiring harness

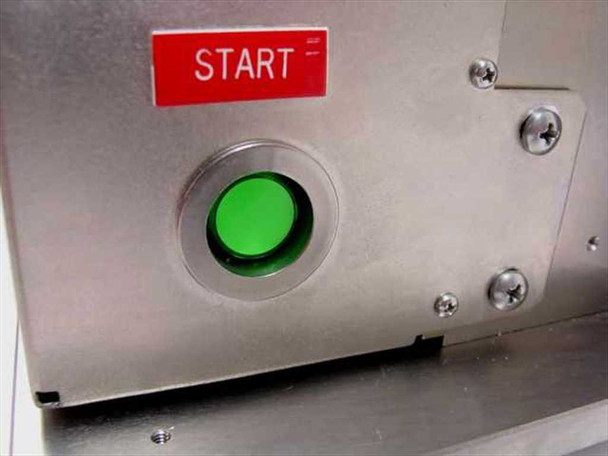

- Control panel: E-Stop mushroom button, LED status indicator, Reset button, Start button

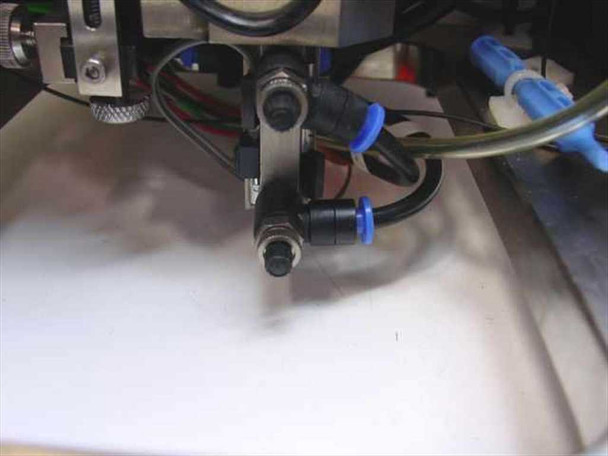

- Punch tooling: Hexagonal stainless steel punch tip with work platen and alignment fixture
- Pneumatic fittings: Push-in style blue fittings throughout
- Rear connections: Round connector, toggle switches, blade fuse holders
- Mounting: Rubber isolation feet
- Component origin: SMC, Keyence, Omron components (Japan)
- Overall machine manufacturer: Not legible / not labeled (custom or OEM-assembled system)
Applications
Electro pneumatic punches of this type are used in semiconductor wafer processing, electronics assembly, and precision manufacturing environments where cleanroom compatibility is required. The stainless steel enclosure and pneumatic drive make the machine appropriate for ISO-classified clean rooms where aluminum or painted surfaces would be unsuitable. Typical applications include punching holes, forming operations, or pressing components into boards, substrates, or flexible materials on a benchtop production or R&D line. The 24VDC solenoid control and sensor feedback (via the Keyence module) allow the punch cycle to be triggered and monitored electronically, supporting integration with automated or semi-automated process lines. SMC pneumatic components are a standard choice in Japanese and global semiconductor fab tooling, and this machine's component set is consistent with clean room production equipment from the late 1990s to early 2000s.
This electro pneumatic punch in stainless steel clean room benchtop housing has been inspected and is in good condition. The stainless steel exterior and enclosure panels are clean and show only light surface wear consistent with lab use. The control panel — including the E-Stop, LED indicator, Reset, and Start buttons — is intact and shows no visible damage. Internal components including the SMC AV2000 soft-start valve, SMC ZFA200-02L suction filter, SMC CDJ2B16-12E-B pneumatic cylinder, 24VDC solenoid valves, Omron relay/timer modules, Keyence sensor, and terminal block wiring all appear complete and undamaged in the photos. The punch tooling and work platen are present and visible. Please view our photo set and contact us if you have any questions.
