Description

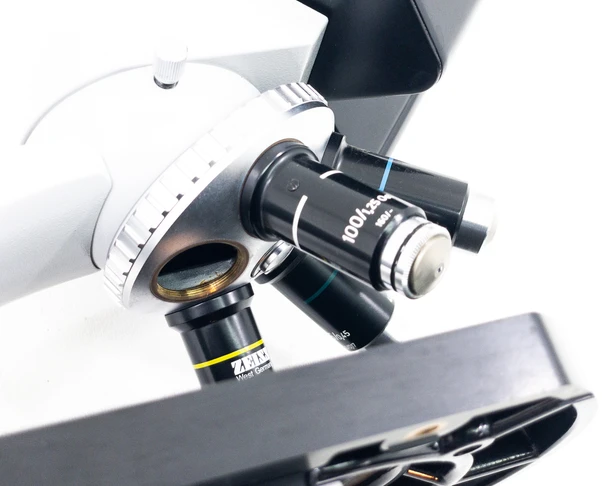

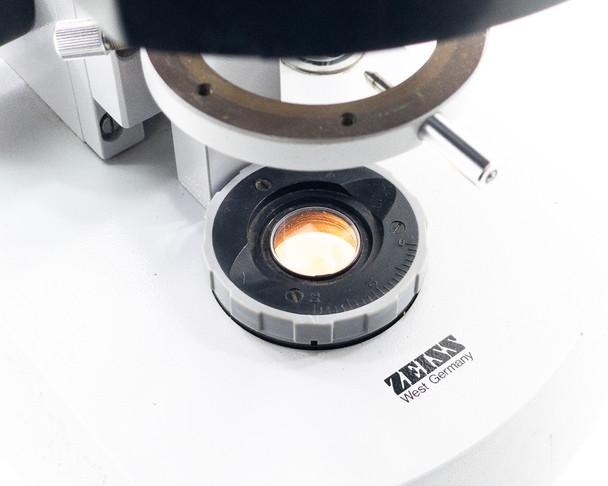

Carl Zeiss 470916-9902 Binocular Microscope Einbau-Trafo CPL W 10x/18 4 Lenses
West German-manufactured binocular compound microscope with integrated illumination transformer. Benchtop unit designed for laboratory observation and analysis across magnification ranges.
Specifications & What's Included
- Model: 470916-9902/15 (MPN: 47 09 16-9902/15)
- Eyepieces: Carl Zeiss CPL W 10x/18
- 4 objectives: 100/1.25 Oil, 40/0.65, 25/0.65, 10/0.22
- Built-in Einbau-Trafo (39 25 60-9004)
- RMS thread standard compatibility
- Loose optical modifier included (may not fit)
Applications
This microscope type is used in laboratory diagnostics, biological research, histology, and inspection work. It accommodates oil immersion objectives for high-magnification analysis and integrates the power supply directly into the base, typical of bench microscope systems from this era.
Condition: Used
This Carl Zeiss 470916-9902 binocular microscope has been powered and tested at our facility. The light source illuminates normally, the coarse and fine focusing knobs operate smoothly and move the stage up and down without binding, and the rotating objective turret turns freely and locks into position without issue. The microscope body and painted surfaces show typical wear consistent with laboratory use, including minor scuffs on the arm and base. A loose optical modifier is located under the stage and is included with the unit; however, it may not be correctly matched to this microscope and may not fit or function with it. All four Zeiss objective lenses and both CPL W 10x/18 eyepieces are present. Please view our photo set and contact us if you have any questions.
This Carl Zeiss 470916-9902 binocular microscope has been powered and tested at our facility. The light source illuminates normally, the coarse and fine focusing knobs operate smoothly and move the stage up and down without binding, and the rotating objective turret turns freely and locks into position without issue. The microscope body and painted surfaces show typical wear consistent with laboratory use, including minor scuffs on the arm and base. A loose optical modifier is located under the stage and is included with the unit; however, it may not be correctly matched to this microscope and may not fit or function with it. All four Zeiss objective lenses and both CPL W 10x/18 eyepieces are present. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Carl Zeiss |
Model: |
470916-9902/15 |
MPN: |
47 09 16-9902/15 |
SKU: |
53271 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Includes 4 Zeiss objectives, CPL W 10x/18 eyepieces, integrated Einbau-Trafo (39 25 60-9004). Loose optical modifier included; may not fit. |
Form Factor: |
Benchtop |
Country of Manufacture: |
West Germany |
Microscope Type: |
Binocular Compound Microscope |
Eyepiece: |
Carl Zeiss CPL W 10x/18 |
Objective Lenses: |
100/1.25 Oil, 40/0.65, 25/0.65, 10/0.22 |
Illumination: |
Built-in (Einbau-Trafo integrated transformer) |
Power Supply: |
Integrated Einbau-Trafo, part no. 39 25 60-9004 |
Application / Use Case: |
Laboratory diagnostics, biological research, histology, inspection |
Compatible With: |
Carl Zeiss standard RMS thread objectives and accessories |
Condition Notes: |
This Carl Zeiss 470916-9902 binocular microscope has been powered and tested at our facility. The light source illuminates normally, the coarse and fine focusing knobs operate smoothly and move the stage up and down without binding, and the rotating |
