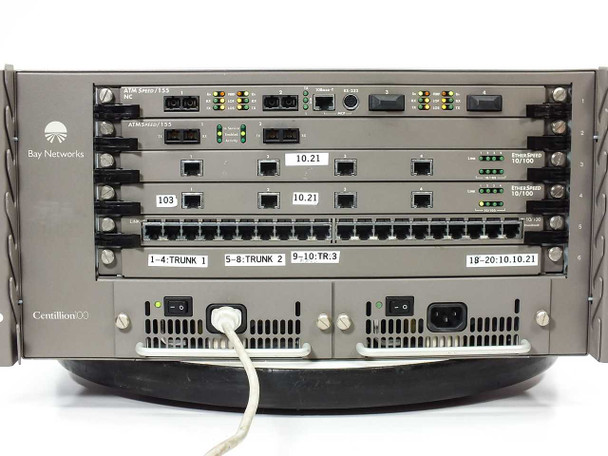

The Bay Networks Centillion 100 is a 5U 19-inch rackmount ATM switching platform that integrates ATM, Fast Ethernet (10/100), and Token Ring connectivity in a single chassis. This listing includes the fully populated chassis with six installed line cards and dual redundant power supplies, making it a complete, ready-to-rack legacy switching system.

Specifications & What's Included

• Chassis: Bay Networks Centillion 100 Rackmount Enclosure — 19" wide, 5U height
• Dimensions: 19" x 15" x 8.75"
• Power: 120/240V~, 50/60 Hz, 5/2.5A
• Power Supplies: Qty 2 — Zytec / Bay Networks, P/N EP071283-C / 721-0060-A (dual redundant, installed)
• Cooling: Dual rear exhaust fans
• Slot count: 6-slot chassis, fully populated
• Board 1 (Qty 1): Centillion ATM Speed/155 NC — ATMSEPED/MCP REV F, P/N 80-005543-AF20 (ATM 155 Mbps OC-3 with MCP management module; dual SC fiber ports; 10Base-T and RS-232 management interfaces)
• Board 2 (Qty 1): Centillion ATM Speed/155 — ATMSEPED/155, P/N 80-00236-C00-B (ATM 155 Mbps OC-3; dual SC fiber ports)
• Board 3 (Qty 2): Centillion EtherSpeed 10/100 — ETHER 100, P/N 80-00647-C00 (10/100 Mbps Fast Ethernet; RJ45 ports)
• Board 4 (Qty 1): Nortel Networks EtherSpeed II 10/100, P/N AS3104004 (10/100 Mbps Fast Ethernet; RJ45 ports)
• ATM port type: SC fiber (multi-mode), 155 Mbps (OC-3)
• Ethernet port type: RJ45, 10/100 Mbps auto-sensing
• Token Ring ports: 24-port RJ45 trunk row (labeled TRUNK 1–3 on front panel)

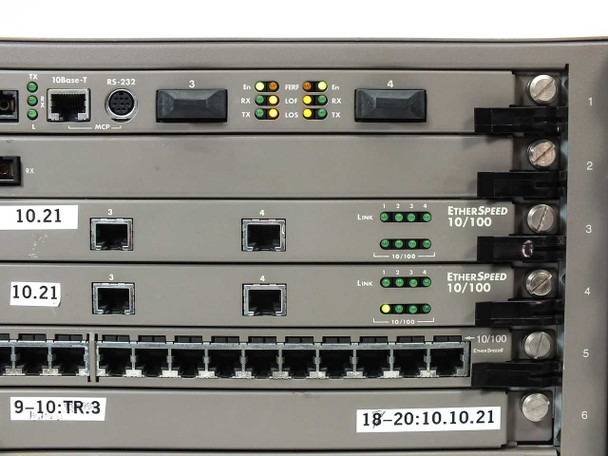

• Management ports: 10Base-T RJ45 and RS-232 (DB9) on ATM NC board
• Certifications: UL Listed (5Z48, I.T.E.), CE, TÜV GS, VCCI-1, FCC Part 15
• Country of Manufacture: United States

Applications

The Centillion 100 was Bay Networks' flagship campus ATM switch of the mid-to-late 1990s, designed to serve as the backbone switching core in enterprise LAN environments that were migrating from legacy Token Ring and Ethernet to ATM (Asynchronous Transfer Mode) infrastructure. ATM switching at 155 Mbps (OC-3) was the high-speed backbone technology of that era — used in university campuses, corporate data centers, and large enterprise networks before Gigabit Ethernet made ATM economically uncompetitive around 1999–2002. The Centillion 100 allowed network engineers to interconnect Token Ring workgroups and Ethernet segments across a high-speed ATM backbone using LAN Emulation (LANE), a key ATM transition technology. Bay Networks was subsequently acquired by Nortel Networks in 1998, which is why these switches are also referenced under the Nortel name. Today, Centillion 100 units are sought by collectors of classic enterprise networking gear, by institutions maintaining legacy Token Ring networks, and occasionally by labs or museums preserving 1990s campus network infrastructure.
