Satcom
Satcom, short for satellite communication, refers to the transmission of data, voice, and video through satellite systems. Satcom technology utilizes satellites in geostationary or low earth orbit to provide global coverage for communication purposes. It enables long-distance communication without the need for physical infrastructure on the ground. Satcom is used in various industries such as aviation, maritime, military, and broadcasting for reliable and secure communication. The use of Satcom is expanding rapidly with advancements in technology, offering high-speed internet access, telecommunication services, and remote monitoring capabilities. Satcom plays a crucial role in connecting remote areas and ensuring seamless communication worldwide.
-
Specialty Microwave 573874-1 LNA Control Panel SATCOM 120V Dual PSU Rack Mount
Specialty Microwave
$750.00Was: $1,500.00Specialty Microwave 573874-1 LNA Control Panel SATCOM 120V Dual PSU Rack MountThe Specialty Microwave 573874-1 is a rack-mount Low Noise Amplifier (LNA) control panel designed for SATCOM ground station systems. Built and co-labeled by AIL / Eaton...53107- SKU:
- 53107
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 23.00 LBS
- Brand:
- Specialty Microwave
- Model:
- 573874-1
- MPN:
- 573874-1
- Type:
- LNA Control Panel
- SKU:
- 53107
- Seller Notes:
- Includes two power cords. Unit only — no additional accessories.
- Form Factor:
- Rack Mount
- Power Requirements:
- 120V AC, Dual Power Supply
- Number of Power Supplies:
- 2 (PS1 and PS2, each 7.5A fused)
- Number of LNA Channels:
- 3 (LNA1, LNA2, LNA3 — each 0.25A fused)
- Control Modes:
- Local and Remote
- Front Panel Indicators:
- Multi-color LED matrix; Auto, Man, REM, LCL, Fault, PS1, PS2
- Front Panel Controls:
- Lamp Test, Fault Reset, Local Select (POS1/POS2), Execute, Mismatch
- Signal Path:
- Vertical In, Horizontal In, Vertical Out, Horizontal Out, Offline In/Out
- Switching Matrix:
- S1 / S2 redundancy switching with LNA1, LNA2, LNA3
- Rear Connectors:
- J1 circular mil-spec connector, J2 DB-25, J5 DB-9, coax ports
- Rear Fusing:
- PS1 7.5A, PS2 7.5A, LNA1/2/3 each 0.25A
- Application:
- SATCOM ground station LNA redundancy and switching control
- Compatible With:
- SATCOM ground station systems requiring LNA switching control
- Co-Branding / OEM:
- AIL / Eaton Advanced Electronics (labeled on front panel)
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Inspected and Tested
- Condition Notes:
- Specialty Microwave 573874-1 LNA Control Panel pulled from a working SATCOM environment. Powered on — all LEDs illuminate on lamp test; front and rear switches engage. Output not tested. Good cosmetic condition. Includes two power cords.
$750.00Was: $1,500.00 -
Miteq U-9473-125K C-Band Upconverter RF Satcom 6424 MHz Rackmount Tested
Miteq
$600.00Was: $1,200.00Miteq U-9473-125K C-Band Upconverter RF Satcom 6424 MHz Rackmount TestedC-Band RF upconverter for satellite communications uplink applications. Converts IF signals to RF output at 6424 MHz for satcom ground station transmit chains.Specifications &...52755- SKU:
- 52755
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 27.00 LBS
- Brand:
- Miteq
- Model:
- U-9473-125K
- MPN:
- U-9473-125K
- Type:
- C-Band RF Upconverter
- SKU:
- 52755
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Unit only; tested working with RF signal generator and RF amplifier
- Country/Region of Manufacture:
- United States
- Form Factor:
- Rackmount, 2U
- Power Requirements:
- 100V-240V AC, 47-63 Hz, 250 VA max
- Frequency Band:
- C-Band
- Application:
- Satellite Communications (Satcom) Uplink
- Signal Conversion:
- IF to RF Upconversion
- Display Frequency Shown:
- 6424.000 MHz
- Attenuation Control:
- Variable, 30.0 dB shown on display
- RF Output Connector:
- SMA (J2 – RF Output, rear panel)
- IF Input Connector:
- SMA (J1 – IF Input, rear panel)
- IF Monitor Output:
- SMA (J1A – IF Mon. Output, rear panel)
- Reference Input:
- 5 MHz external/internal selectable (J5, rear)
- Remote Interface:
- DB-9 serial (J6, J10 – Remote Interface, rear)
- Summary/Alarm Output:
- DB-9 (J3 – Summary/Alarm, rear panel)
- Redundancy Interface:
- DB-7 (J7 – Redundancy/Alarm, rear panel)
- Front Panel Controls:
- LCD frequency/attenuation display, numeric keypad, function keys
- Front Panel Monitors:
- IF LO Monitor, RF LO Monitor BNC ports
- CE Certified:
- Yes
- Manufacturer Location:
- Miteq Inc., Hauppauge, NY
- Condition Notes:
- Miteq U-9473-125K C-Band RF Upconverter tested and confirmed working using an RF signal generator and RF amplifier. Powers on, LCD displays correctly. Light cosmetic wear on panels. Please view photos and contact us with questions.
$600.00Was: $1,200.00 -
LNR TREXCOM PL/6595 C-Band Upconverter Wide Super Extended 5845-6725 MHz Plug-In
LNR TREXCOM
$750.00Was: $1,500.00LNR TREXCOM PL/6595 C-Band Upconverter Wide Super Extended 5845-6725 MHz Plug-InC-Band upconverter module for satellite ground station applications. Converts baseband or intermediate frequency signals to C-Band transmission frequencies in the 5845–6725...52666- SKU:
- 52666
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 12.00 LBS
- Brand:
- LNR TREXCOM
- Model:
- PL/6595
- MPN:
- PL/6595-5
- Secondary Model:
- PL/6595-5 Rev J
- Type:
- C-Band Upconverter
- SKU:
- 52666
- Frequency Range:
- 5845–6725 MHz
- Band:
- C-Band
- Coverage:
- Wide Super Extended C-Band
- Form Factor:
- Plug-In Module / Tray Assembly
- RF Output Connector:
- SMA (RF LO and Output, front panel)
- Signal Connector:
- D-Sub multipin (rear backplane connector)
- Power Connector:
- IEC C14 AC inlet
- Hardware Revision:
- Rev J
- Application:
- Satellite Ground Station Upconversion
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Plug-in tray assembly; pulled from a working satellite ground station environment.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- LNR TREXCOM PL/6595 C-Band Upconverter in good used condition. Pulled from a working satellite ground station environment where it was in use and functional. Light wear consistent with professional service use.
$750.00Was: $1,500.00 -
Miteq U-9453 C-Band Upconverter 70/140 MHz IF to 5.85-6.65 GHz RF Satcom
Miteq
$1,800.00Was: $3,600.00Miteq U-9453 C-Band Upconverter 70/140 MHz IF to 5.85-6.65 GHz RF SatcomC-Band RF upconverter for satellite earth station uplink applications. Converts 70 MHz or 140 MHz intermediate frequency signals to 5.85–6.65 GHz RF output for C-Band satcom...52451- SKU:
- 52451
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 31.00 LBS
- Brand:
- Miteq
- Model:
- U-9453
- MPN:
- U-9453
- Type:
- C-Band RF Upconverter
- SKU:
- 52451
- Frequency Band:
- C-Band
- IF Input Frequency:
- 70 MHz / 140 MHz
- RF Output Frequency Range:
- 5.85 - 6.65 GHz
- LO Frequency:
- 6.137 GHz
- Power Requirements:
- 100-120V AC 3.0A / 220-240V AC 1.5A, 47-63 Hz
- Power Consumption:
- 250 VA Max
- Form Factor:
- Rackmount
- Dimensions:
- 29" W x 24" D x 5" H
- Interface / Connectors:
- SMA/Type-N RF ports, DB9 remote interface, BNC monitors
- Control / Interface:
- Front panel keypad + LCD display; remote interface (x2)
- Alarm Outputs:
- Summary Alarm, Redundancy Alarm (DB9)
- Reference:
- Internal / External selectable
- Monitor Outputs:
- IF LO A, IF LO B, RF LO, RF Signal, IF Monitor (70 MHz), IF Monitor (140 MHz)
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Unit only; tested working at our facility, good cosmetic condition
- Country/Region of Manufacture:
- United States
- Application:
- Satellite Earth Station Uplink, C-Band Satcom Transmission
- Condition Notes:
- Miteq U-9453 C-Band upconverter. Tested at our facility and in good working condition. Cosmetically very good — light surface wear only. All connectors and controls intact. Please view photos and contact us with questions.
$1,800.00Was: $3,600.00 -
Miteq U-9456 54735 Ku-Band Upconverter 70 MHz IF 13.5-14.5 GHz RF Satcom
Miteq
$1,100.00Was: $2,200.00Miteq U-9456 54735 Ku-Band Upconverter 70 MHz IF 13.5-14.5 GHz RF SatcomThe Miteq U-9456/54735 is a Ku-Band upconverter designed for satellite communications earth station applications. It accepts a 70 MHz intermediate frequency (IF) input signal and...52450- SKU:
- 52450
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 31.00 LBS
- Brand:
- Miteq
- Model:
- U-9456
- Secondary Model:
- 54735
- MPN:
- U-9456/54735
- SKU:
- 52450
- Type:
- Ku-Band Upconverter
- Condition:
- Used – Inspected and Tested
- IF Input Frequency:
- 70 MHz
- RF Output Frequency Range:
- 13.5 GHz to 14.5 GHz
- Frequency Band:
- Ku-Band
- Power Requirements:
- 100–240V AC, 47–63 Hz, 250 VA Max
- Input Voltage Options:
- 120V–3.0A / 220V–1.5A / 240V–1.5A
- RF Output Connector:
- Type N (J2 — RF Output)
- IF Input Connector:
- Type N (J1 — IF Input)
- IF Monitor Output Connector:
- Type N (J1A — IF Monitor Output)
- Reference Frequency:
- 5 MHz (Int/Ext selectable)
- Attenuation:
- Variable (dB), front-panel adjustable
- Remote Interface:
- Dual DB-15 remote interface ports (J6, J10)
- Alarm Outputs:
- Summary Alarm (J3, DB-9), Redundancy Alarm (I7)
- Form Factor:
- Rackmount, 3U
- Dimensions:
- 24" x 19" x 5"
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Unit only; no accessories included. Tested working at our facility.
- Application:
- Satellite Communications (Satcom), VSAT Earth Station
- Condition Notes:
- Miteq U-9456/54735 Ku-Band Upconverter tested and confirmed working at our facility using an RF Signal Generator and RF Amplifier. Powers on, LCD and keypad functional. Typical rack wear cosmetically. Please contact us with any questions.
$1,100.00Was: $2,200.00 -

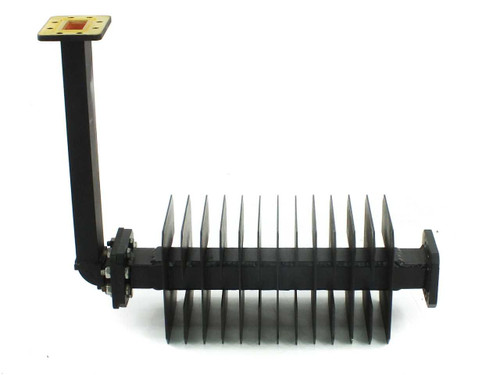

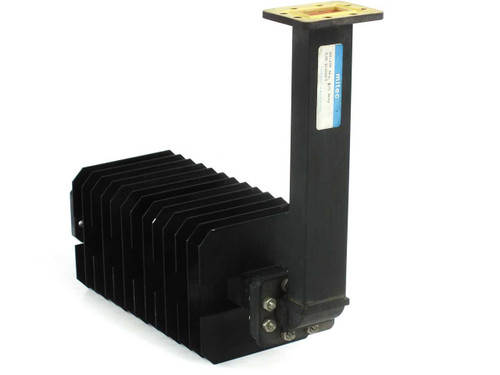

Mitec WR-159 1000W F-Band C-Band Waveguide Dummy Load Extender P/N 1510607
Mitec
$275.00Was: $550.00Mitec WR-159 1000W F-Band C-Band Waveguide Dummy Load Extender P/N 1510607Rigid waveguide dummy load extender rated for 1000 watts. Extends RF power absorption capacity for TWTA transmitter testing applications. WR-159 rectangular waveguide flange...52448- SKU:
- 52448
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 9.00 LBS
- Brand:
- Mitec
- Model:
- WR-159 Rigid Waveguide Assembly
- MPN:
- 1510607
- Type:
- Waveguide Dummy Load Extender
- SKU:
- 52448
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Unit only; C-Band to F-Band transition adapter not included
- Waveguide Size:
- WR-159
- Frequency Band:
- F-Band / C-Band Compatible
- Power Rating:
- 1000 Watts
- Port Dimensions:
- 40.386 x 20.193 mm
- Load Extender Dimensions:
- 13" x 5" x 5"
- Overall Dimensions:
- 16" x 14" x 5"
- Flange Type:
- Rectangular waveguide flange (WR-159)
- Application:
- TWTA transmitter testing, RF power load extension
- Compatible With:
- C-Band TWTA transmitters (with WR-159 transition)
- Country/Region of Manufacture:
- Canada
- Condition Notes:
- Mitec WR-159 1000W waveguide dummy load extender, P/N 1510607. Tested good at our facility during C-Band TWTA transmitter testing. C-Band to F-Band transition adapter not included. Typical wear from prior use.
$275.00Was: $550.00 -
Paradise Datacom P300 Satellite Modem Earth Station Data Link 1U Rackmount
Paradise
$175.00Was: $350.00Paradise Datacom P300 Satellite Modem Earth Station Data Link 1U RackmountThe P300 is a satellite modem designed for earth station data link applications. This 1U rackmount unit facilitates VSAT and SCPC communications for satellite ground terminals...52292- SKU:
- 52292
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 12.00 LBS
- Brand:
- Paradise Datacom
- Model:
- P300
- MPN:
- P300
- Type:
- Satellite Modem
- SKU:
- 52292
- Form Factor:
- 1U Rackmount
- Application:
- Earth Station Data Link / VSAT / SCPC
- Front Panel Display:
- Alphanumeric LCD display
- LED Indicators:
- STATUS, RX OK, TX OK, TEST, STANDBY
- Rear Interface - IF/RF:
- BNC connectors (IF Tx and Rx)
- Rear Interface - Data:
- DB-9, DB-15, DB-25 / SCSI-style connectors
- Rear Interface - Remote:
- DB-9 Remote control port
- Rear Interface - Clock:
- BNC Station Clock input
- Redundancy:
- 1-for-1 redundancy port present
- Seller Notes:
- Unit only; no accessories included.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Paradise Datacom P300 satellite modem inspected and in good used condition. Pulled from a working environment where it was in active use and functional. Chassis, display, keypad, and rear connectors all intact with only minor wear.
- Front Panel Indicators:
- STATUS, RX OK, TX OK, TEST, STANDBY LEDs
- Front Panel Controls:
- Numeric keypad + navigation keys
- Rear Interfaces:
- BNC (x2), DB9 (x2), DB15, SCSI-style connector
- Station Clock Interface:
- BNC
- Remote Control Interface:
- DB9
- 1-for-1 Redundancy Port:
- DB9
$175.00Was: $350.00 -

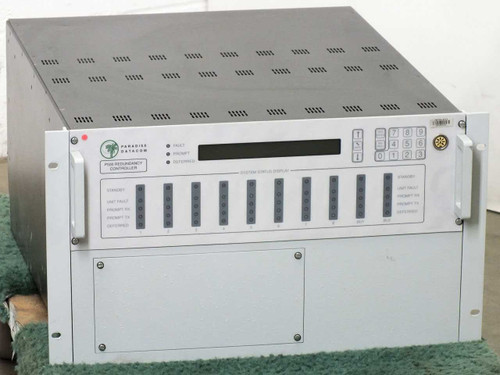

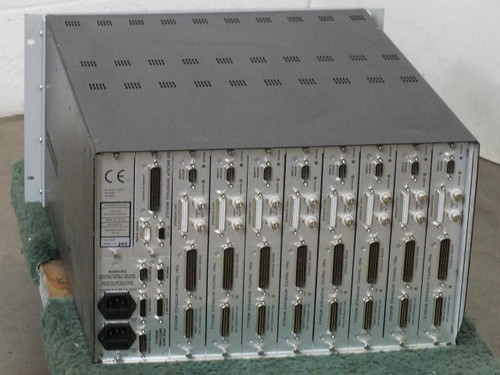

Paradise Datacom P500 1-for-8 Redundancy Controller P520 P550 P551 Satcom
Paradise
$750.00Was: $1,500.00Paradise Datacom P500 1-for-8 Redundancy Controller P520 P550 P551 SatcomThe Paradise Datacom P500 is a complete 1-for-8 (1:8) satellite modem redundancy system designed to provide automatic protection switching for traffic and ESC (Engineering Service...52291- SKU:
- 52291
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 70.00 LBS
- Brand:
- Paradise Datacom
- Model:
- P500
- MPN:
- P500
- Secondary Model:
- P520 / P550 / P551
- SKU:
- 52291
- Type:
- 1-for-8 Satellite Modem Redundancy Controller
- Form Factor:
- Rackmount
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes P520 chassis, P550 BIM, 8x P551 TIMs, and 2x PS42 power supply modules
- Redundancy Configuration:
- 1-for-8 (1:8)
- Interface Types:
- RS422 DCE, V.35 DCE, X.21 DCE/DTE, G.703
- G.703 Data Rates:
- 64 kbps co-directional, 1544 kbps, 2048 kbps
- G.703 Connector Types:
- 75Ω BNC and 120Ω balanced
- Included Modules:
- P520 Data Switching Module, P550 BIM, 8x P551 TIM
- Power Supply Model:
- PS42 – 230/115V AC Power Supply Module (x2)
- Power Requirements:
- 230/115V AC
- Switching Type:
- Automatic protection switching, traffic and ESC circuits
- Compatible With:
- Paradise Datacom modem equipment
- Application:
- Satellite modem redundancy, automatic failover protection
- Country/Region of Manufacture:
- United Kingdom
- Condition Notes:
- Paradise Datacom P500 1-for-8 Redundancy Controller. Used, inspected, pulled from a working environment. Includes P520 chassis, P550 BIM, 8x P551 TIMs, and 2x PS42 PSUs. Good condition with normal wear.
$750.00Was: $1,500.00
